S SERIES Automatic High Speed (Speed-Wave) Folder Gluer

S SERIES Automatic High Speed (Speed-Wave) Folder Gluer

Categories
Folder-Gluer For Cardboard Box
Brand
 Rolam | Ragaoke
Model
S SERIES
FOB Port
Ningbo,Shanghai
Terms of Payment
Western Union,T/T Paypal
Update
10/22/2019
S SERIES Automatic High Speed (Speed-Wave) Folder Gluer S SERIES Automatic High Speed (Speed-Wave) Folder Gluer S SERIES Automatic High Speed (Speed-Wave) Folder Gluer S SERIES Automatic High Speed (Speed-Wave) Folder Gluer S SERIES Automatic High Speed (Speed-Wave) Folder Gluer
Product Description

S Parameters

S series 650S 800S 1100S
Processed Materials
Carton board max. 650 MM 800 MM 1100 MM
Corrugated flute type A,B,E A,B,E A,B,E
Capability
Speed max. 400 m/min 400 m/min 400 m/min
Inching speed 10 m/min 10 m/min 10 m/min
Thickness of folded box max. 12 mm 20 mm 20 mm
Blank width 650 mm 800 mm 1100 mm
Total power 29.5 kW 31 kW 31.2 kW
Compressed air 6 bar 6 bar 6 bar
Air compressor capacity 10 m³/h 10 m³/h 10 m³/h
Air tank capacity 60 L 60 L 60 L
Dimensions weight
Length*Width*Height 12*1.4*1.8m 16.5 *1.4*1.8m 16.5*1.7*1.9m
Net Weight 5T 6.6T 7.6 T

S Features introduction

Paper Feeding Section

Rail width can be horizontally adjusted and set by seven pieces30mm thickened feeding belt and 10mm metal board.Operators can operate feeder switch in any regional.

Embossing drive wheel guide the feeding section belt, side feed
gates in the right and left are adjustable according to the products.

Vibration device coordinate with motor which helps machine consecutive and automatic feeding quick and simply.
Feeder section can stack 400MM height paper board.

Independently motorized servo motor control, simultaneous feeding mode with the main motor.
Feeder section equipped with three pieces feeding knife, adjust the asymmetrical lengths as per the box sample。

Aligner section

The paper board sent from feeder section will be corrected by aligner
section to ensure transmission accurately.

Pressing drive pressure can be adjusted up and down to accommodate
different paper board thickness.

Pre-folding section

Special first folding line pre-fold 180°. third line 165° ,which perfectly
meeting the requirements of automatic packaging industry.

Climbing Section

Besides the faster speed,higher precise and running more steady,
It is also much easier to adjust machine comparing with traditional folder gluer.

Lower gluing tank

lower gluing tank is large volume.

Easy to remove and clean

Electronic upper gluing system by guns.

Folding and closing

The Second and fourth folding line 180°

Folding and closing section transmit from right and left side ,the
belt speed can be adjusted separately and correct the way of box
running to ensure straightly delivery.

Trombone section

Up and down belt can be adjusted separately.

Equipped with photo electronic counting device and kicking paper device,
which can press the paper after accounting and make it easy to pack . Also
equipped with feeding paper inspection device.

Transmission

Equipped with special additional sponge belt for the press of boxes valley part.

Upper section moves back and forward, allowing for different box length.

Upper section moves back and forward, allowing for different box length.

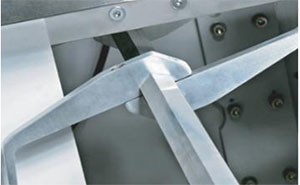

4 and 6-corner device

Motorized and untimed electronic back folding system with intelligent servo
motor technology

Spraying System

Equipped with three guns, convenient in the production of 4/6 corner box and
various special-shaped box, gluing quickly and accurately sizing

Samples Parameters

Carton type and size:
Model 650Type 800Type 1100Type
A 75-650 75-800 75-1100
B 60-650 60-800 60-800
C(Min) 35 35 35
Crash lock bottom box
Model 650Type 800Type 1100Type
A 160-650 160-800 160-1100
B 90-900 90-900 90-900
C(Min) 20 20 20
D(Min) 30 30 30
E(Min) 40 40 40
Tapered box
Model 650Type 800Type 1100Type
A 160-650 160-800 160-1100
B 90-650 90-800 90-1100
C(Min) 40 40 40
D(Min) 35 35 35
E(Min) 20 20 20
4 corners box
Model 650Type 800Type 1100Type
A 160-500 160-800 160-1100
B 120-650 120-800 120-1000
C(Min) 20-200 20-200 20-200
D(Min) 90 90 90
E(Min) 80 80 80
6 corners box
Model  650Type 800 Type 1100 Type
A 250-650 250-800 250-1100
B 120-800 120-800 120-800
C(Min) 20-200 20-200 20-200
D(Min) 90 90 90
E(Min) 80 80 80
