AS SERIES Automatic High-Speed Bottom Lock Folder Gluer

AS SERIES Automatic High-Speed Bottom Lock Folder Gluer

Categories
Folder-Gluer For Cardboard Box
Boese
 Rolam | Ragaoke
Model
GK-AS
FOB Port
Ningbo,Shanghai
Terms of Payment
Western Union,T/T Paypal
Update
11/27/2019
AS SERIES Automatic High-Speed Bottom Lock Folder Gluer AS SERIES Automatic High-Speed Bottom Lock Folder Gluer AS SERIES Automatic High-Speed Bottom Lock Folder Gluer AS SERIES Automatic High-Speed Bottom Lock Folder Gluer AS SERIES Automatic High-Speed Bottom Lock Folder Gluer
Product Description

AS Parameters

Name GK-AS  Automatic Bottom Lock Gluing Folding Machine
Model 650AS GK-800AS 1100AS
Paper Material Cardboard210-800g, E Corrugated
Max. Liner speed Max. 260 meter/minute
Feeding way Automatically and continuously feeding
Way of folding  Fold 1 and fold 3 are 180° and 135°
Fold 2 and fold 4 are 180°
Bottom folded and glued
Glue Material Water-base cold glue
Total Power 11.2 kw 11.2 kw 11.2 kw
Weight 4T 4.5T 5T
Over dimension 13x1.3x1.45m 13x1.45x1.45m 13x1.8x1.45m

AS Features introduction

Paper Feeding Section

6pcs Adjustable feeding belts to ensure easy adjustment,
stable and smoothly feeding.

Continuously Variable Speeder to ensure feeding internal
and stable transmission.

One-touch Pneumatic knife, easy for the adjustment of feeding
belts.

Aligner section

Equipped with auto-correction device to correct the obliquity
and ensure the correct feeding

Pre-folding Section

Double-board structure with a set of pre-folding knife.

Pre-fold angle is 180°and 135°, especially suitable for small
but high cartons, more satisfactory while rapid prototyping

Lock bottom Section

board tracking structure, upper gluer can make bottom-locked
box automatic gluing and forming.

The entire bottom-lock part is installed in a reversible bracket,
substantially reduce the swap adjustment time of bottom-fold box and the other types of box.

Lower gluing tank

Equipped with the lower gluing tank.

Folding and closing

The folding is equipped with the driving belt, folding belts have corrective
function, extension work, make the box forming more stable.

Trombone section

Adjust the pressure easily and reliably to ensure the gluing quality; Equipped
with pneumatic counting device which makes the counting conveniently. The
press is equipped with independent speeder. The operator can set the collecting speed

Transmission

Press: Equipped with one-touch pneumatic pressure adjustment, easy operation.
Press has two functions:

1.waiting, when feeding is paused, press will auto enter into waiting state

2.Travel switch, pause the machine in case of wrong collecting

Samples Parameters

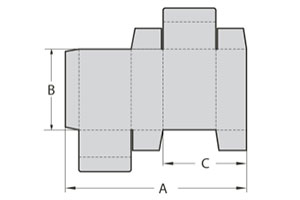

Straight-line box
Model 650Type 800Type 1100Type
A 90-650 90-800 120-1100
B 60-800 60-800 60-800
C(Min) 35 35 35
Crash lock bottom box
Model 650Type 800Type 1100Type
A 160-650 160-800 160-1100
B 90-900 90-900 90-900
C(Min) 20 20 20
D(Min) 35 35 35
E(Min) 100 100 100
