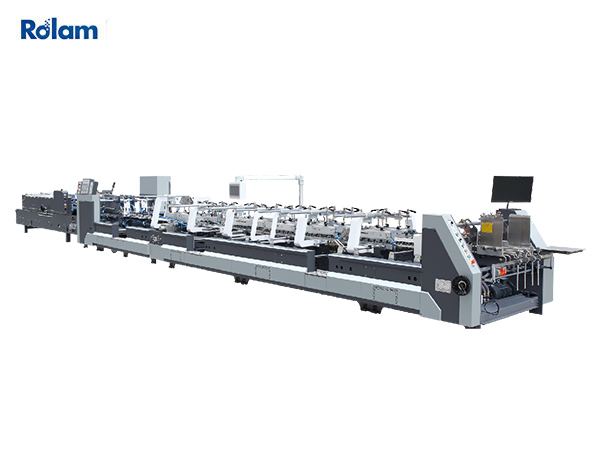

LC-S Introduction

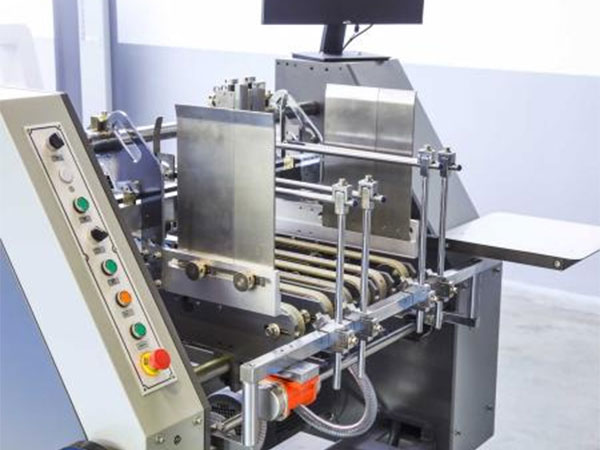

•Fast job changeover
•Driven by ribbed V belt
•Multi-type work capabilities
•With integrated bump & turn allows to turn cartons 90º and its alignment

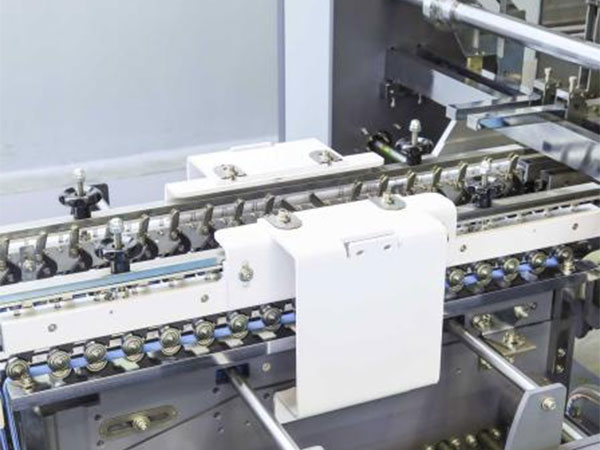

•Extra length crash lock bottom section

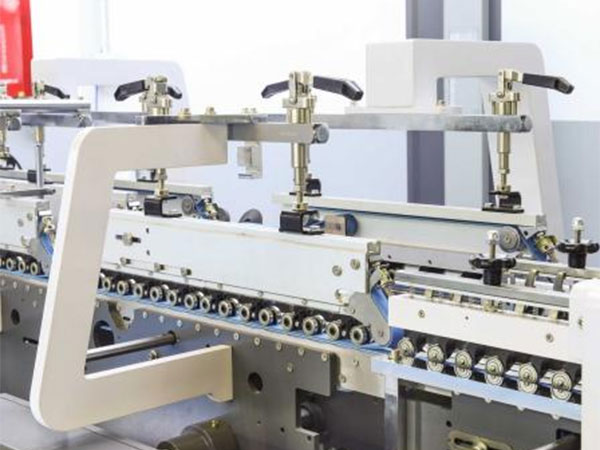

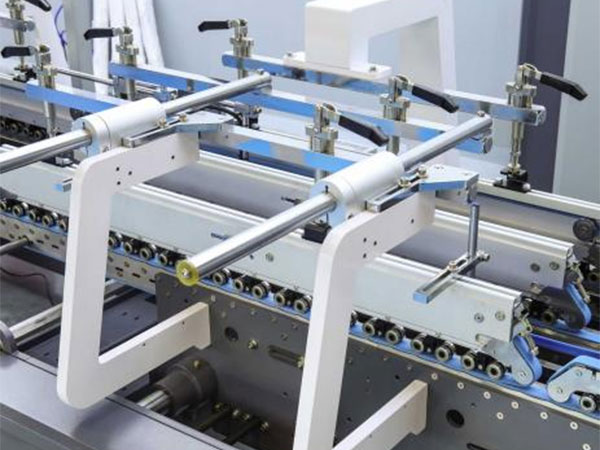

•Extra folding & closing section with collapsible central carrier
•Suitable for Straight line, lock bottom, 4 & 6 corner cartons and more

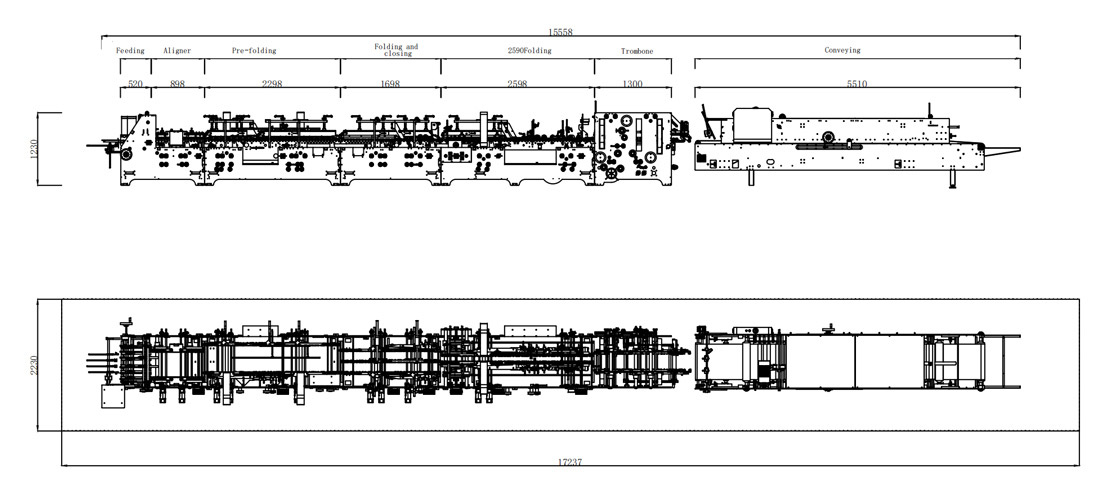

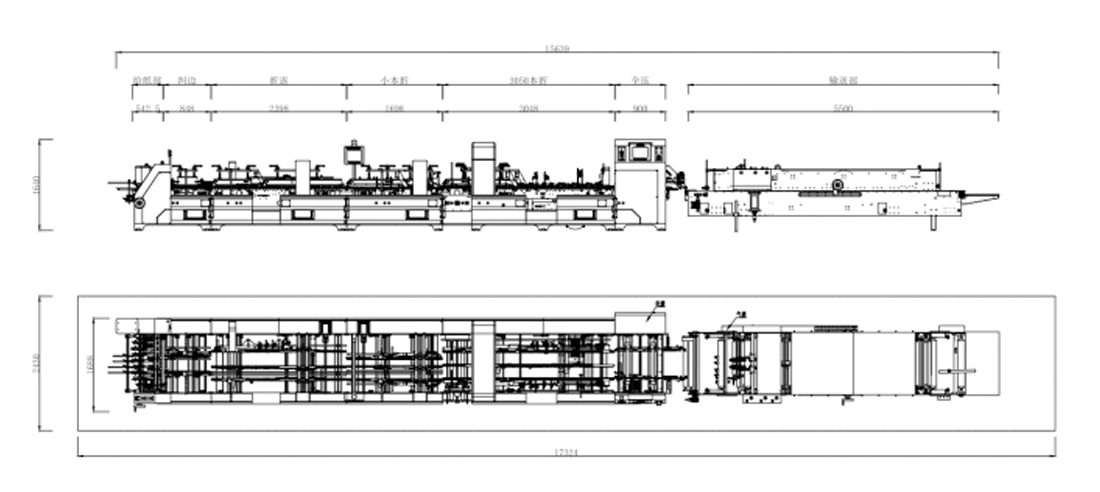

650LC-S Foundation Drawing

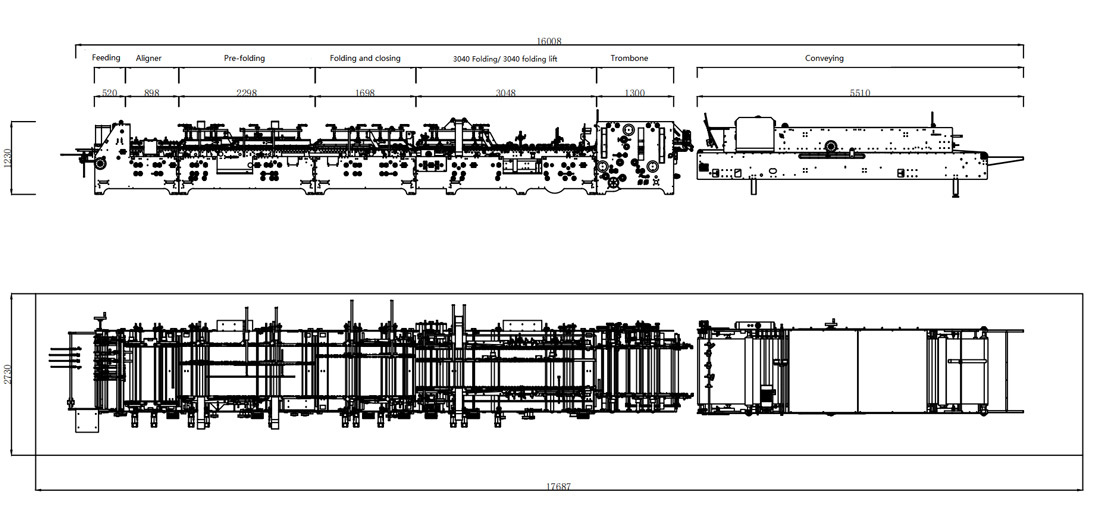

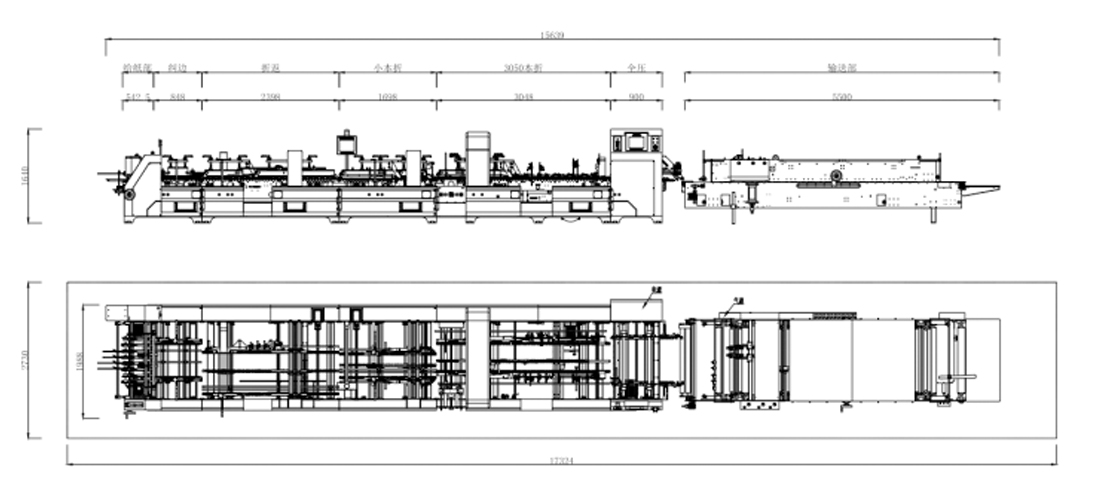

800LC-S Foundation Drawing

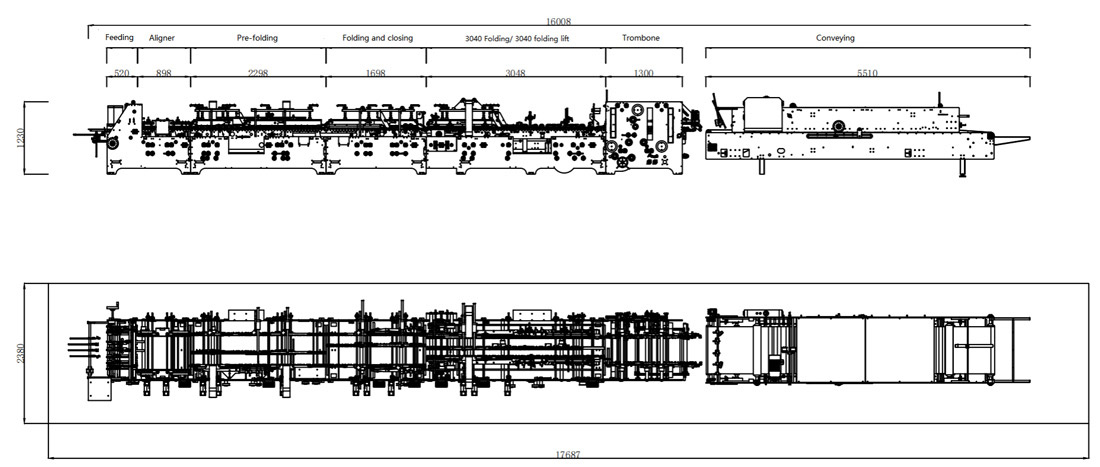

1100LC-S Foundation Drawing
LC-S Parameters
|
MODEL |
650 |
800 |
1100 |
|
Paper Material |
Cardboard 210-800 GSM，B/N/E/F Flute |
||
|
Max Speed |
400 M/Min |
||
|
Max Thickness of Folded Box |
12 MM |
||
|
Way of Folding |
Fold 1 and fold 3 are 180°and 135°, fold 2 and fold 4 are 180° |
||
|
Power Supply |
3P 380V 50HZ |
||
|
Blank Width |
650 MM |
800 MM |
1100 MM |
|
Length X Width X Height |
13 X 1.3 X 1.3M |
15 X 1.5 X 1.3M |
15 X 1.8 X 1.3M |
|
Net Weight |
5.5 T |
7.5 T |
8 T |
|
Total Power |
28.6 KW |
31.18 KW |
31.18 KW |
Samples Parameters
| Straight Line Box |  |
|||
|
Way of Folding |
Two Carries |
Three Carries |
||
|
Model |
650 Type |
800 Type |
1100 Type |
|
|
B+C+D+E |
130-650 |
140-800 |
200-1100 |
|
|
C+D (Min) |
65 |
70 |
100 |
|
|
F |
70-800 |
70-800 |
70-800 |
|
|
G (Max) |
800 |
800 |
800 |
|
| Crash lock bottom box |  |
|||
|
Way of Folding |
Two Carries |
Three Carries |
||
|
Model |
650 Type |
800 Type |
1100 Type |
|
|
B+C+D+E |
130-650 |
140-800 |
200-1100 |
|
|
C+D (Min) |
65 |
70 |
100 |
|
|
F |
70-800 |
70-800 |
70-800 |
|
|
G (Max) |
800 |
800 |
800 |
|
|
H (Min) |
25 |
25 |
25 |
|
|
L |
30-100 |
30-100 |
30-100 |
|
| 4 Corners Box |  |
|||
|
Way of Folding |
Two Carries |
Three Carries |
||
|
Model |
650 Type |
800 Type |
1100 Type |
|
|
A+B+C |
120-650 |
120-800 |
120-1100 |
|
|
B (Min) |
65 |
65 |
75 |
|
|
F |
70-800 |
70-800 |
70-800 |
|
|
G (Max) |
800 |
800 |
800 |
|
|
H (Min) |
25 |
25 |
25 |
|
|
L |
30-100 |
30-100 |
30-100 |
|
| 6 corners box |  |
|||
|
Way of Folding |
Two Carries |
Three Carries |
||
|
Model |
650 Type |
800 Type |
1100 Type |
|
|
A+B+C+D+E |
210-650 |
210-800 |
210-1100 |
|
|
B (Min) |
90 |
90 |
90 |
|
|
C (Min) |
30 |
30 |
30 |
|
|
F |
70-800 |
70-800 |
70-800 |
|
|
G (Max) |
800 |
800 |
800 |
|
|
H (Min) |
25 |
25 |
25 |
|
|
L |
30-100 |
30-100 |
30-100 |
|
