PCS SERIES Automatic Grouping 4 and 6 corner Folder Gluer

PCS SERIES Automatic Grouping 4 and 6 corner Folder Gluer

Categories
Folder-Gluer For Corrugated Box
Boese
 Rolam | Ragaoke
Model
PCS
FOB Port
Ningbo,Shanghai
Terms of Payment
Western Union,T/T Paypal
Update
11/27/2019
PCS SERIES Automatic Grouping 4 and 6 corner Folder Gluer PCS SERIES Automatic Grouping 4 and 6 corner Folder Gluer PCS SERIES Automatic Grouping 4 and 6 corner Folder Gluer PCS SERIES Automatic Grouping 4 and 6 corner Folder Gluer PCS SERIES Automatic Grouping 4 and 6 corner Folder Gluer
Product Description

PCS Parameters

Name Automatic Grouping 4 and 6 corner Folder Gluer
model GK-1200PCS GK-1450PCS
Paper Material Cardboaed210-800g A/B/E Corrugated
Max. Liner speed Max.260 meter/minute
Feeding way Automatically and continuously feeding
Way of folding Fold 1 and fold 3 are 180° and 135°
Fold 2 and fold 4 are 180°
Power Supply 3P380V50HZ
Main motor power 18.4kw
Total power 35kw
Dimensions weight
Net Weight 9.5T 11T
Length*Width*Height 15.7x1.65x1.84m 15.7x1.65x2.14m

PCS Features introduction

Paper Feeding Section

Feeding belts equipped with the function of air suction

Equipped with new type of feeding knife. You can adjust them according to the box shapes.

With special pushing teeth function, easy to adjust the backing board.

Vibration device coordinate with motor which helps machine consecutive and automatic feeding quickly and simply

Aligner section

The paper board sent from feeder section will be corrected by aligner section to ensure transmission accurately.

Pressing drive pressure can be adjusted up and down to accommodate different paper board thickness.

Pre-folding section

Special first folding line pre-fold 180°. third line 165° ,which perfectly meeting the requirements of automatic packaging industry.

Lower gluing tank

lower gluing tank is large volume.

Easy to remove and clean

Electronic upper gluing system by guns.

Folding and closing

The upper pressure belt adopts main drive and cylinder pressure, is mainly
used for the production of different thickness of corrugated products.

Equipped with flexible box forming device to ensure the perfect forming of the box.

Trombone section

Belt can be adjusted independently.

Independently adjust the speed, and draw back the distance of the paper, convenient
for collection. Equipped with electronic photoelectric counting function, convenient for counting.

Transmission

Pressing and Transmission unit has regulator, patting device, can effectively avoid

the“scissors mouth” phenomenon of corrugated products.

Pressing and Transmission unit adopts waiting function, when feeding section is in the
pause status, it will automatically enable waiting function. If has error in paper

collection unit, it will automatically stop the machine work.

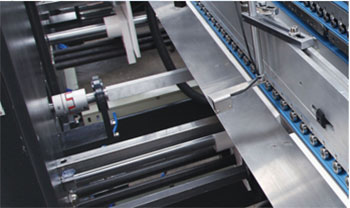

4 and 6-corner device

Motorized and untimed electronic back folding system with intelligent servo motor technology

Spraying System

Equipped with three guns, convenient in the production of 4/6 corner box and various
special-shaped box, gluing quickly and accurately sizing

Samples Parameters

Straight-line box
Model 1200 Type 1450Type
A 1200-250 1450-250
B 1000-80 1000-80
C(Min) 150-25 150-25
Crash lock bottom box
Model 1200Type 1450Type
A 1200-250 1450-250
B 800-100 800-100
C(Min) 25 25
D(Min) 30 30
E(Min) 40 40
Tapered box
Model 1200Type 1450Type
A 1200-250 1450-250
B 800-100 800-100
C(Min) 40 40
D(Min) 35 35
E(Min) 20 20
4 corners box
Model 1200Type 1450Type
A 150-1100 180-1400
B 130-800 130-800
C(Min) 20-200 20-200
D(Min) 90 90
E(Min) 80 80
6 corners box
Model  1200Type 1450Type
A 400-1100 400-1450
B 130-800 130-800
C(Min) 20-200 20-200
D(Min) 90 90
E(Min) 80 80

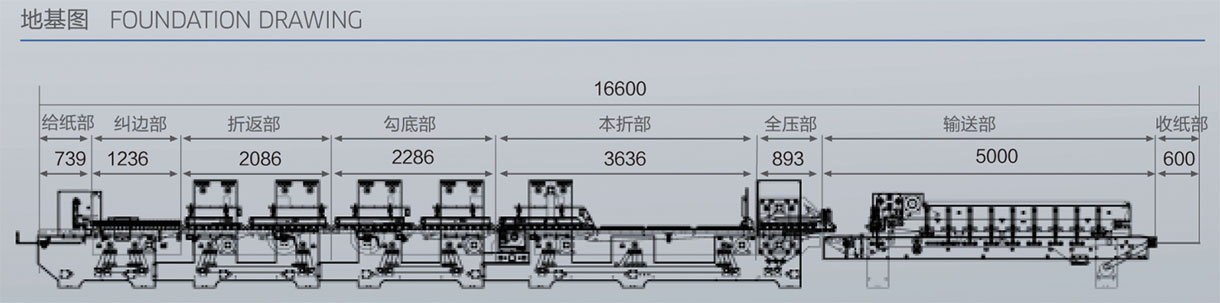

FOUNDATION DRAWING
