PCS-Y Introduction
The PCS-Y fully automatic high-speed box pasting machine, a needle packaging enterprise, provides an ideal production solution.
The PCS-Y fully automatic high-speed box gluing machine, with multiple accessory designs, can meet various box designs. Fast, stable, precise, and easy to set up and operate. Each module is driven by an independent motor. The electric bracket device, equipped with linear guide rails, improves machine performance and durability.
This machine can produce box types such as linear boxes and lock-bottom boxes
(Provide corresponding functions for customer box shapes)
PCS-Y Parameters
|
MODEL |
1200 |
1450 |
1600 |
1800 |
|
Paper material |
Cardboard 210-800gsm, A/ B/ E Flute |
|||
|
Max.Speed |
260m/min |
|||
|
Max. thickness of folded box |
12mm |
12mm |
12mm |
12mm |
|
Way of folding |
Fold 1 and fold 3 are 180°and 135°,fold 2 and fold 4 are 180° |
|||
|
Power supply |
3P 380V 50HZ |
|||
|
Blank width |
1200mm |
1450mm |
1600mm |
1800mm |
|
Length × Width × Height |
16×1.96×1.6m |
16×2.26×1.6m |
16×2.4×1.8m |
17×2.6×1.8m |
|
Net Weight |
9.5T |
10.5T |
11.5T |
12.0T |
|
Total power |
22kw |
22kw |
25kw |
25kw |
Function
It is a dual-use device that can paste cardboard and corrugated paper packaging boxes
Strong stainless steel frame ensures the machine runs stably at high speed.
Automatic fault diagnosis alarm function, Wireless remote control for easy user operation.
A machine with PLC control, a photocell touch screen for adjusting the machine.
Low-voltage electrical appliances, button switches, transmission parts, timing belts, press belts, bearings, servo motors, inverters, pneumatic components, etc., are all imported products that meet European and American advanced national safety standards.
The side touch screen displays the machine's speed, output, fault alarm, touch screen controls the machine's start/stop, paper feeding clutch, box receiving part's start/stop, parameter setting, and other operations.
PCS-Y Features Introduction
|
|

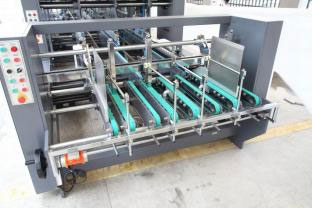

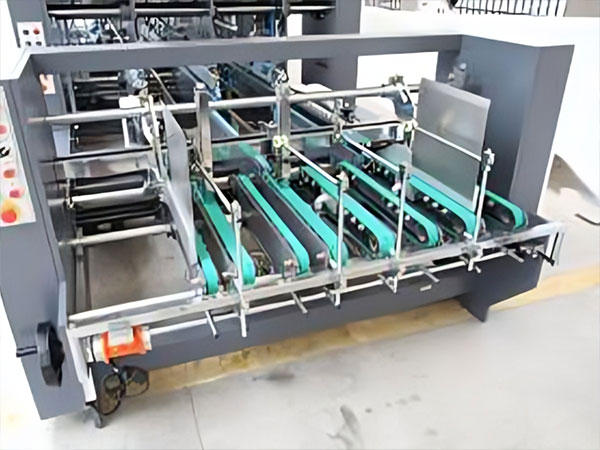

Paper Feeding Section 1. Equipped with an air suction function. 2. Multi-stage rail to ensure the verticality of the pressing board. To ensure that the paper feeding is not skewed. 3. The unique structure keeps a simpler and more convenient adjustment of the pressing board. Push structure makes supporting the cardboard adjustment more convenient and stable. 4. The baffles on the left and right can be adjusted up and down to shorten the adjusting and carton changing time. 5. The vibration device coordinates with the motor, which helps the machine feed consecutively and automatically feed quickly and simply. |
|
|
Aligner Section 1. The paper board sent from the feeder section will be corrected by the aligner section to ensure accurate transmission. 2. Pressing drive pressure can be adjusted up and down to accommodate different paper board thickness. |
 |

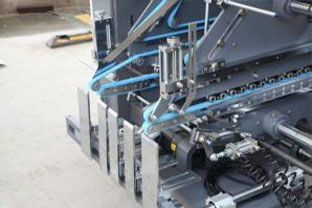

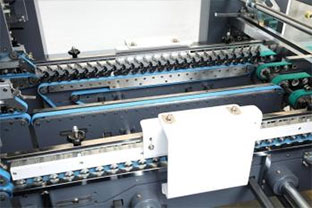

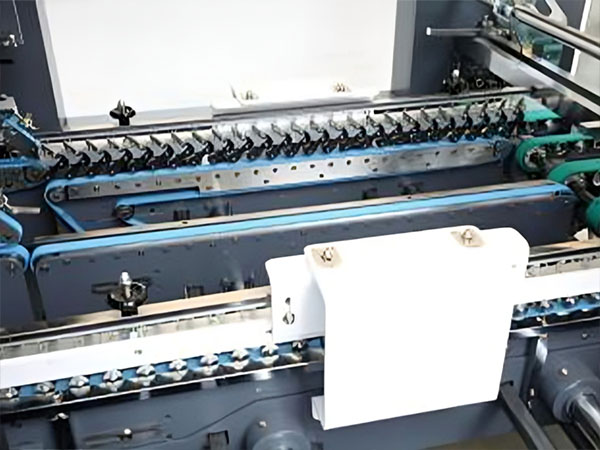

Pre-folding and Bottom lock section 1. The function of pre-folding and lock bottom is shared; one machine has multiple functions. 2. Pre-folding meets automatic packaging requirements 3. The lock bottom box can also be perfectly formed |
 |

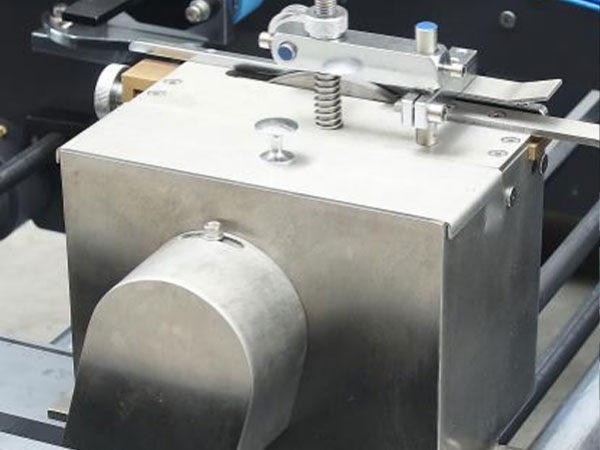

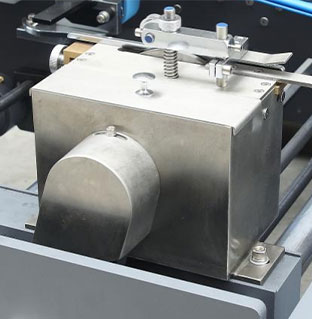

Lower Gluing Tank 1. The lower gluing tank is 2L. 2. Easy to remove and clean. |
|

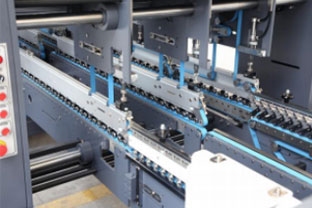

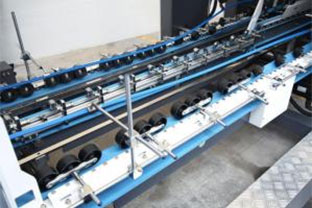

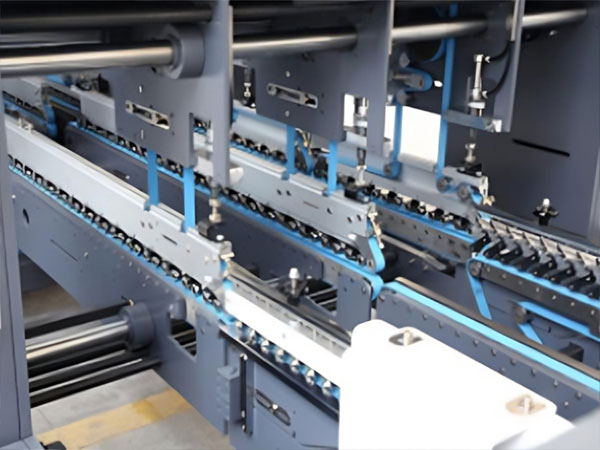

Folding and Closing 1. Equipped with a flexible box-forming device to ensure the perfect forming of the box. 2. The upper pressure belt adopts the main drive and cylinder pressure more suitable for different thickness corrugated products. 3. Folding section with servo motors, which can adjust the folding section belts' speed separately. |
|
|

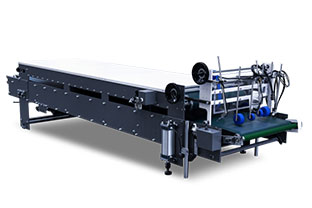

Trombone Section 1. The belt can be adjusted independently. 2. Independently adjust the speed and draw back the distance of the paper, convenient for collection. 3. Equipped with an electronic photoelectric counting function, convenient for counting. |
|
|
Transmission 1. The pressing and Transmission unit has a regulator, a patting device, which can effectively avoid the “scissors mouth” phenomenon of corrugated products. 2. The pressing and Transmission unit adopts a waiting function. When the feeding section is in the pause status, it will automatically enable the waiting function. If has error in the paper collection unit, it will automatically stop the machine work. |
 |
|
Cold Glue System Equipped with three guns, convenient in the production of 4/6 corner box and various special-shaped boxes, gluing quickly and accurately sizing. |
 |
Samples Parameters
| Straight Line Box |  |
|||
|
Model |
1200Type |
1450Type |
1600Type |
|
|
B+C+D+E |
280- 1200 |
350- 1450 |
350- 1600 |
|
|
E(Min) |
30 |
30 |
30 |
|
|
E(Max) |
500 |
500 |
500 |
|
|
F |
100- 1350 |
100- 1350 |
100- 1400 |
|
|
G(Max) |
1450 |
1450 |
1500 |
|
| Crash Lock Bottom Box |  |
|||
|
Model |
1200Type |
1450Type |
1600Type |
|
|
B+C+D+E |
280- 1200 |
350- 1450 |
350- 1600 |
|
|
E(Min) |
30 |
30 |
30 |
|
|
E(Max) |
500 |
500 |
500 |
|
|
F |
100- 1100 |
100- 1350 |
100- 1500 |
|
|
G(Max) |
1400 |
1400 |
1400 |
|
|
H(Min) |
35 |
35 |
35 |
|
|
L |
30- 120 |
30- 120 |
30- 120 |
|

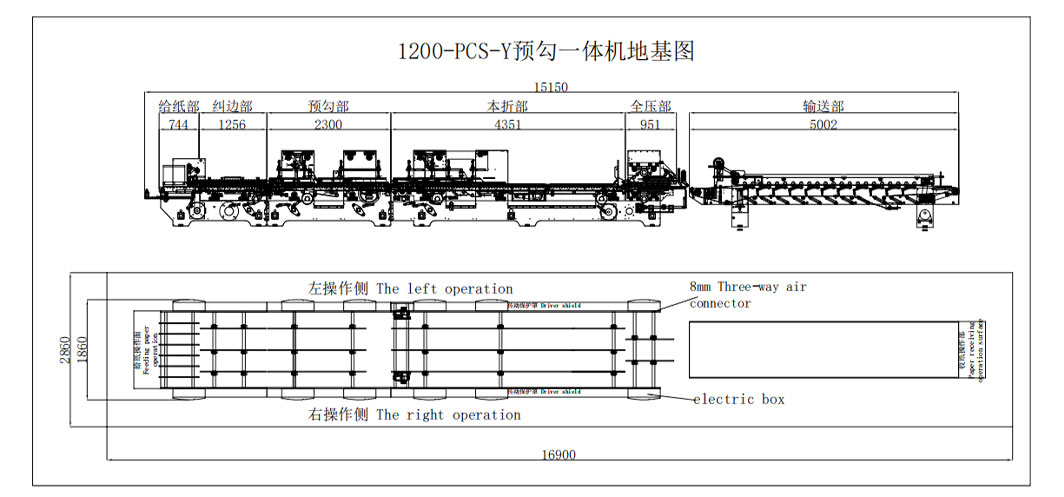

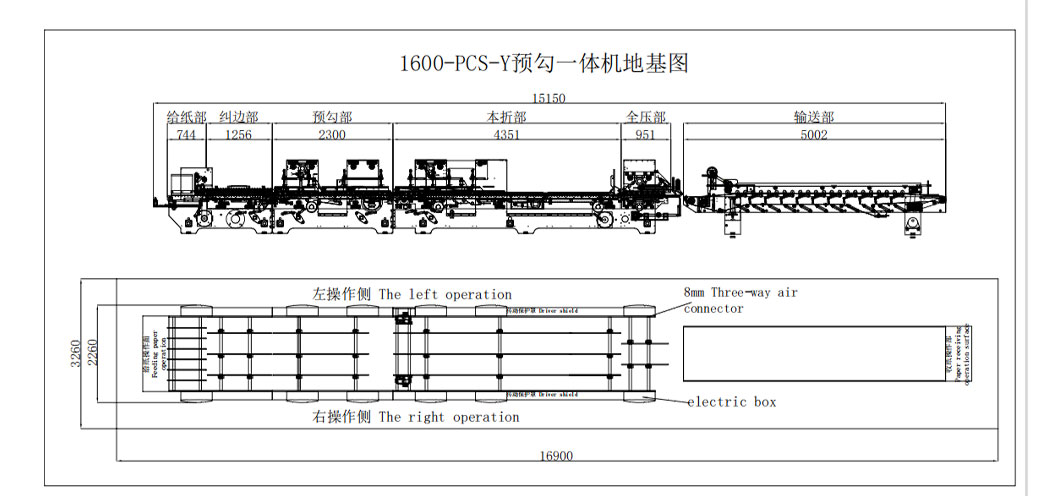

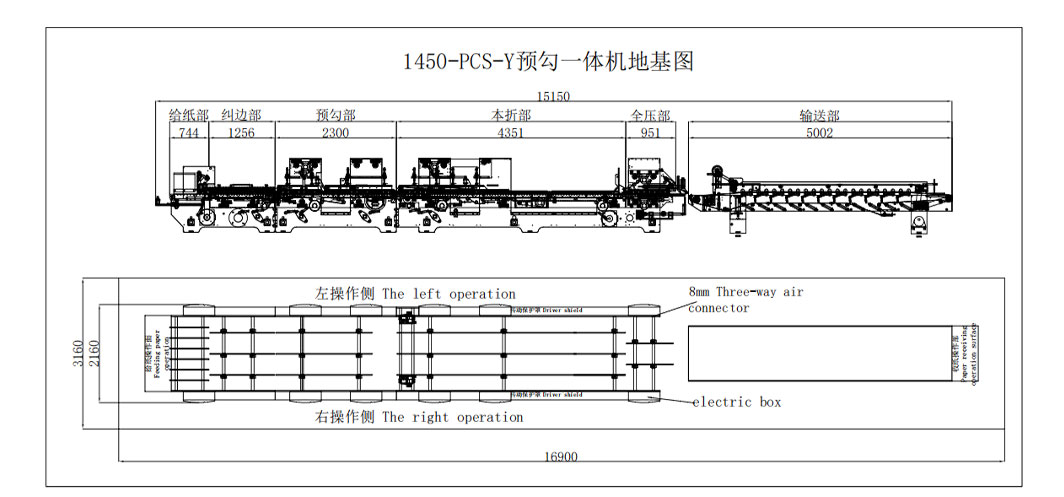

Foundation Layout Plan
