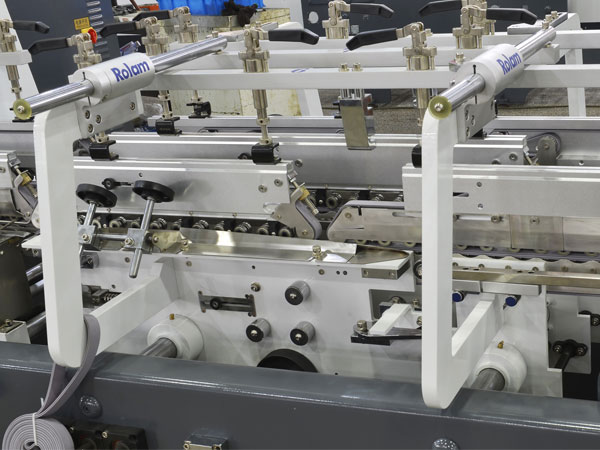

GS SERIES Automatic High Speed 4 and 6 corner Folder Gluer GS SERIES Automatic High Speed 4 and 6 corner Folder Gluer GS SERIES Automatic High Speed 4 and 6 corner Folder Gluer GS SERIES Automatic High Speed 4 and 6 corner Folder Gluer GS SERIES Automatic High Speed 4 and 6 corner Folder Gluer
Product Description

GS Parameters

GS series  650GS 800GS 1100GS
Processed Materials
Carton board max. 650 MM 800 MM 1100 MM
Corrugated flute type A,B,E A,B,E A,B,E
Capability
Speed max. 400 m/min 400 m/min 400 m/min
Inching speed 10 m/min 10 m/min 10 m/min
Thickness of folded box max. 12 mm 20 mm 20 mm
Blank width 650 mm 800 mm 1100 mm
Total Power 29.5kw 31 kW 31.2 kW
Compressed air 6 bar 6 bar 6 bar
Air compressor capacity 10 m³/h 10 m³/h 10 m³/h
Air tank capacity 60 L 60 L 60 L
Dimensions & weight
Length*Width*Height 12*1.4*1.8m 16.5 *1.4*1.8m 16.5*1.7*1.9m
Net Weight 6T 6.6T 7.6 T

GS Features introduction

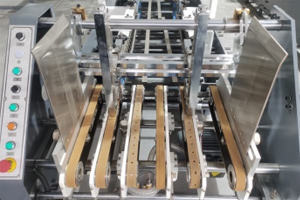

Paper Feeding Section

Rail width can be horizontally adjusted and set by seven pieces 30mm
thickened feeding belt and 10mm metal board.

Operators can operate feeder switch  in any regional.

Embossing drive wheel guide the feeding section belt, side feed gates
in the right and left are adjustable according to the products.

Vibration device coordinate with motor which helps machine consecutive and automatic feeding quick and simply.  Feeder section can stack 400MM
height paper board.

ndependently motorized servo motor control, simultaneous
feeding mode with the main motor.

Feeder section equipped with three pieces feeding knife,
adjust the asymmetrical lengths as per the box sample.

Aligner section

The paper board sent from feeder section will be corrected by aligner section
to ensure transmission accurately.

Pressing drive pressure can be adjusted up and down to accommodate different
paper board thickness.

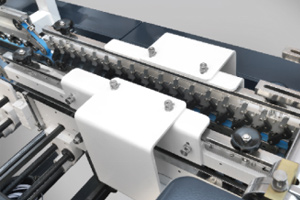

Pre-folding section

Special first folding line pre-fold 180°. third line 165° ,which perfectly
meeting the requirements of automatic packaging industry.

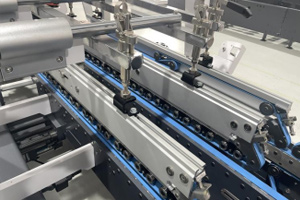

Crash lock bottom section
Compiete set of crash lock bottom device makes the lock bottom part perfectly .Sectional-type upper belt board with special design.

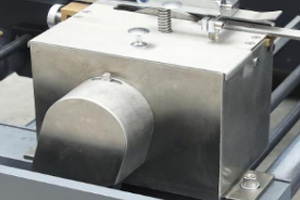

Lower gluing tank

lower gluing tank is large volume.

Easy to remove and clean

Electronic upper gluing system by guns.

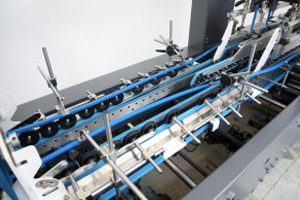

Folding and closing

The Second and fourth folding line 180°

Folding and closing section transmit from right and left side ,the belt
speed can be adjusted separately and correct the way of box running
to ensure straightly delivery.

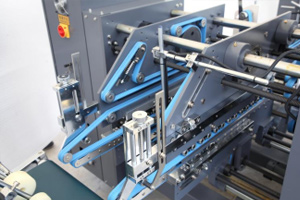

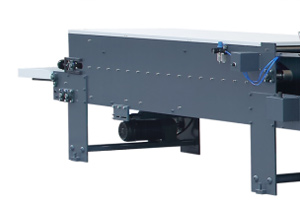

Trombone section

Up and down belt can be adjusted separately.

Equipped with  photo electronic counting device and kicking paper device,
which can press the paper after accounting and make it easy to pack .
Also equipped with feeding paper inspection device.

Transmission

Equipped with special additional sponge belt for the press of boxes valley part.

Upper section moves back and forward, allowing for different box length.

Box Squaring Device

Full press section continuously and automatically box collection mechanism that ensures a neat transfer to the press section, guaranteeing a well aligned flow.


4 and 6-corner device

Motorized and untimed electronic back folding system with intelligent
servo motor technology

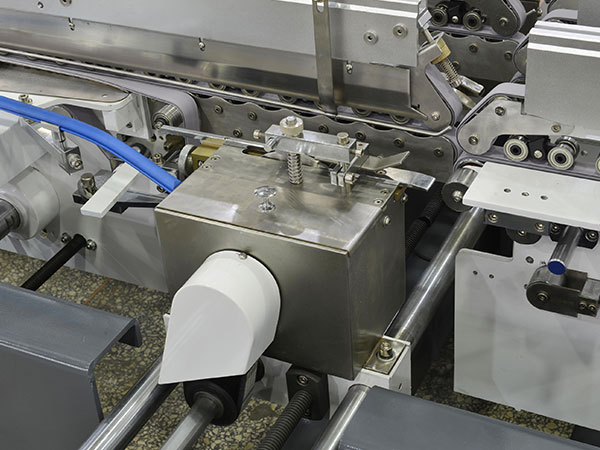

Spraying System

Equipped with three guns, convenient in the production of 4/6 corner
box and various special-shaped box, gluing quickly and accurately sizing

Samples Parameters

Straight-line box
Model 650Type 800Type 1100Type
A 75-650 75-800 75-1100
B 60-650 60-800 60-800
C(Min) 35 35 35
Crash lock bottom box
Model 650Type 800Type 1100Type
A 160-650 160-800 160-1100
B 90-900 90-900 90-900
C(Min) 20 20 20
D(Min) 30 30 30
E(Min) 40 40 40
Tapered box
Model 650Type 800Type 1100Type
A 160-650 160-800 160-1100
B 90-650 90-800 90-1100
C(Min) 40 40 40
D(Min) 35 35 35
E(Min) 20 20 20
4 corners box
Model 650Type 800Type 1100Type
A 160-500 160-800 160-1100
B 120-650 120-800 120-1000
C(Min) 20-200 20-200 20-200
D(Min) 90 90 90
E(Min) 80 80 80
6 corners box
Model 650Type 800 Type 1100 Type
A 280-650 280-800 280-1100
B 120-800 120-800 120-800
C(Min) 20-200 20-200 20-200
D(Min) 90 90 90
E(Min) 80 80 80

FOUNDATION DRAWING
