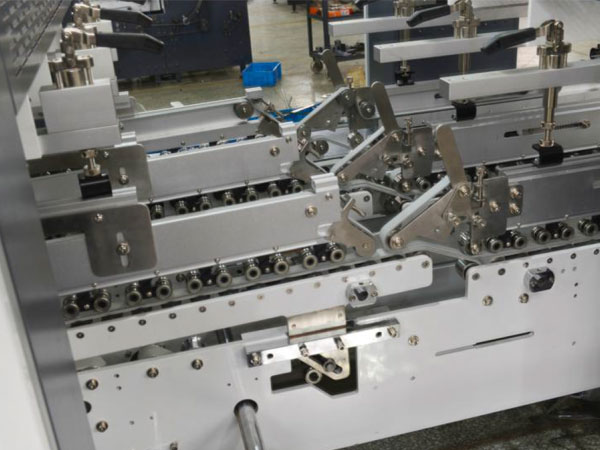

XL Machine Picture

The automatic high-speed folding gluing machine is another masterwork of Zhejiang New Luolan Machinery. suitable for straight-line, crash-lock bottom, double wall, 4 & 6-corner boxes.

Intelligent Memory Function Folder Gluer: Memory function is an ideal piece of equipment for repeating different jobs after the first trial with less work. XL is suitable for straight-line, double-wall, auto lock-bottom, 4 6 corners type folding cartons.

XL Parameters

Model	650	800	1100
Paper material	Cardboard 210-800gsm, A/B/E Flute
Max.Speed	400m/min
Max. thickness of the folded box	12mm	12mm	12mm
Way of folding	Fold 1 and fold 3 are 180°and 135°,fold 2 and fold 4 are 180°
Power supply	3P 380V 50HZ
Blank width	650mm	800mm	1100mm

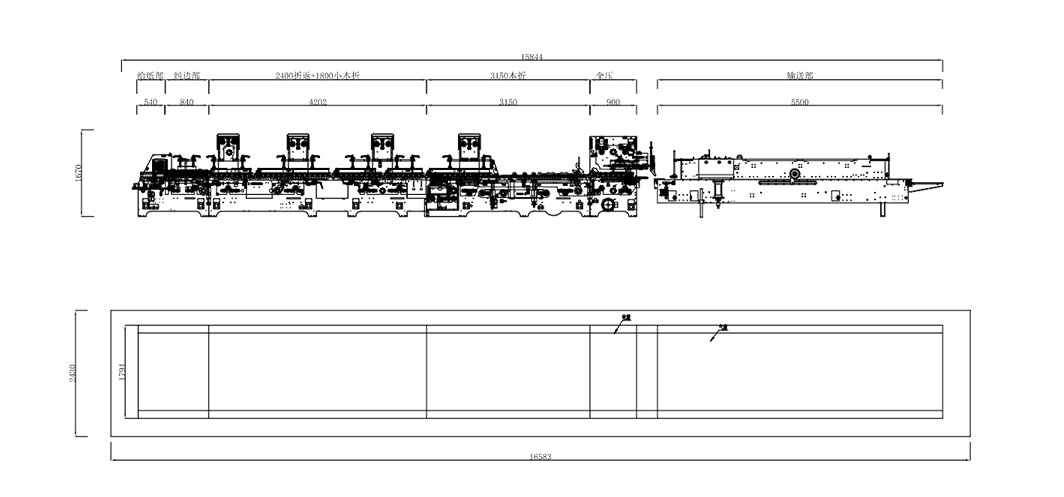

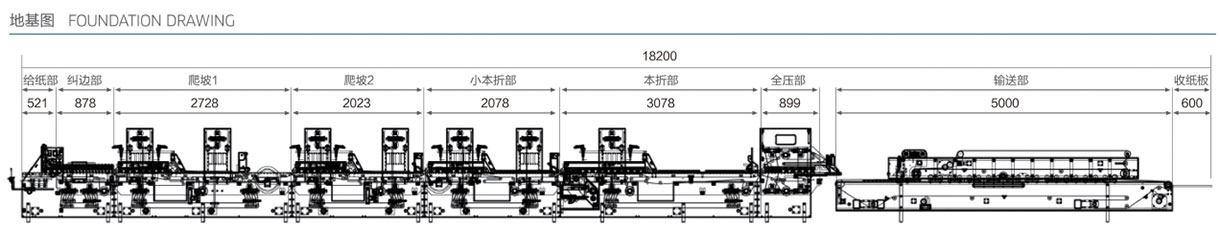

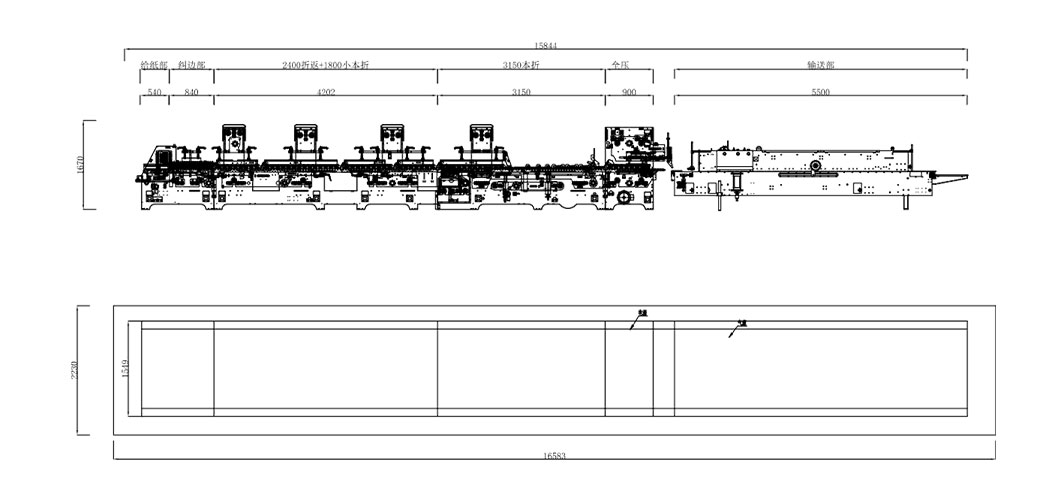

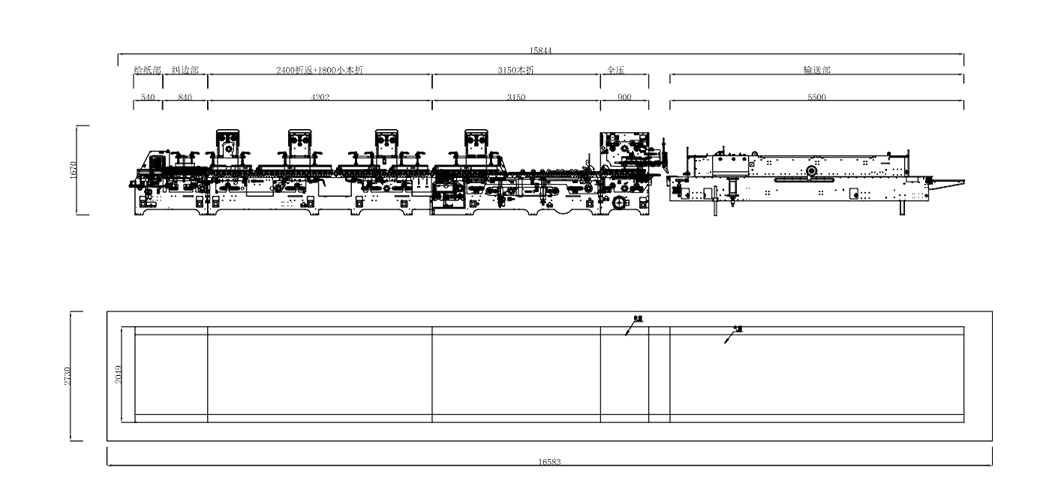

Length x Width x Height	15.8x1.54x1.67m	15.8x1.79x1.67m	15.8x2.0x1.67m
Net Weight	7.0T	8.0T	9.0T
Total power	30kw	32kw	32kw

Function

Apply to a corrugated cardboard paper box.

Strong stainless steel frame ensures the machine runs stably at high speed.

Automatic fault diagnosis alarm function, Wireless remote control for easy user operation.

A machine with PLC control, a photocell touch screen for adjusting the machine.

Low-voltage electrical appliances, button switches, transmission parts, timing belts, press belts, bearings, servo motors, inverters, pneumatic components, etc., are all imported products that meet European and American advanced national safety standards

The side touch screen displays the machine's speed, output, fault alarm, touch screen controls the machine's start/stop, paper feeding clutch, box receiving part's start/stop, parameter setting, and other operations.

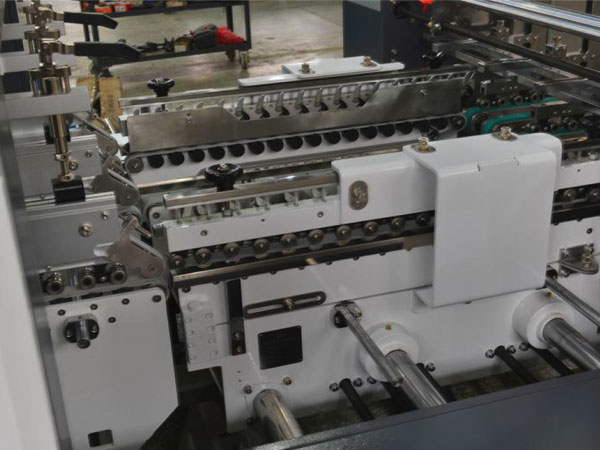

XL Features introduction

Paper Feeding Section

1. A variable frequency motor drives the feed part and synchronizes with the main engine
2. Feeder section equipped with three pieces of feeding knives, adjust the asymmetrical lengths as per the box sample。
3. Rail width can be horizontally adjusted and set by a seven-piece 30mm thickened feeding belt and a 10mm metal board.
4. Operators can operate the feeder switch in any region.
5. Embossing drive wheel guides the feeding section belt, side feed gates on the right and left are adjustable according to the products.
6. Vibration device coordinates with the motor, which helps the machine feed consecutively and automatically, quickly and simply. The feeder section can stack 400MM height paperboard.

Aligner Section

The paper board sent from the feeder section will be corrected by the aligner section to ensure accurate transmission.
Pressing drive pressure can be adjusted up and down to accommodate different paper board thickness.

Pre-folding Section

Special first folding line pre-fold 180°. Third line 165°, which perfectly meets the requirements of automatic packaging y.

Crash Lock Bottom Section

Compete set of crash lock bottom devices makes the lock bottom Part perfectly. Sectional-type upper Belt board with a special design.

Lower Gluing Tank

1. The lower gluing tank is 2L.
2. Easy to remove and clean
3. Electronic upper gluing system by guns.

Folding and Closing

1. The Second and fourth folding line 180°.
2. The folding and closing section transmits from the right and left side, the belt speed can be adjusted separately, and the way the box runs can be corrected to ensure straight delivery.
3. Final Folding lower central carrier pneumatically up and down

Rombone Section

1. The up and down belt can be adjusted separately.
2. Equipped with a photo-electronic counting device and a kicking paper device, which can press the paper after accounting and make it easy to pack. Also equipped with a feeding paper inspection device.
3. With a spanking function for the RSC-type box.

Box Squaring

Full press section continuously and automatically, with a box collection mechanism that ensures a neat transfer to the press section, guaranteeing a well-aligned flow.

Transmission

1. Equipped with a special additional sponge belt for the pressing of the box valley part.
2. Upper section moves back and forward, allowing for different box lengths.

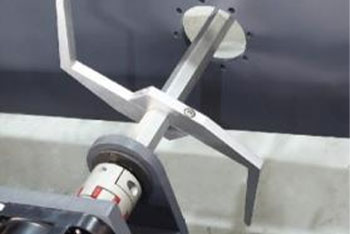

4 and 6-Corner

Motorized and untimed electronic back-folding system with intelligent servo motor technology.

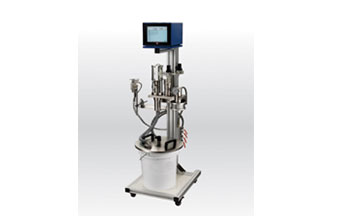

Cold Glue System

Equipped with three guns, convenient in the production of 4/6 corner boxes and various special-shaped boxes, gluing
quickly and accurately sizing.

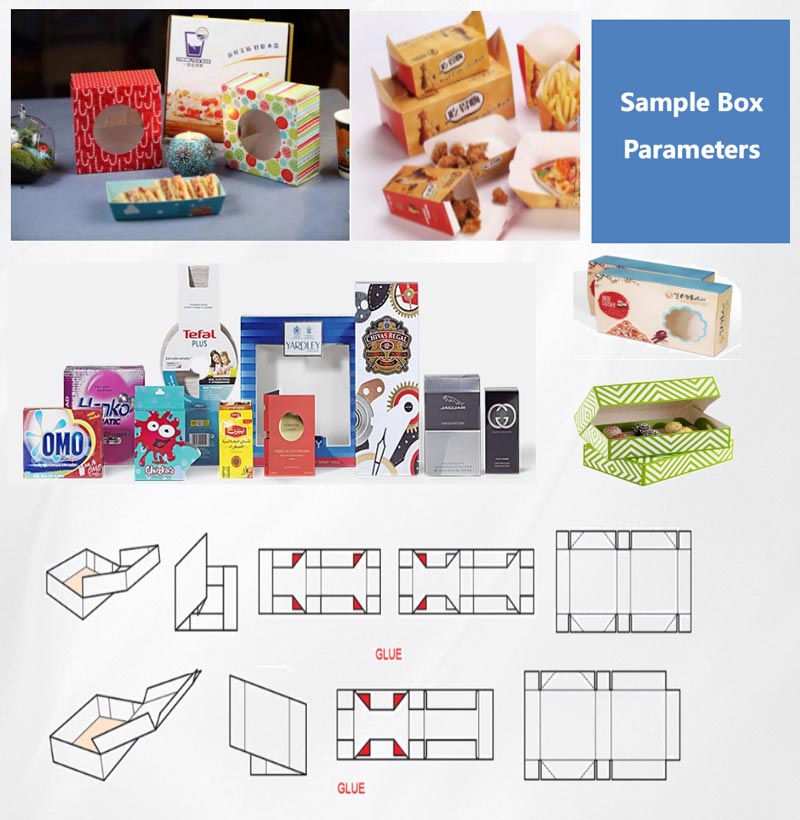

Samples Parameters

Straight Line Box
Model	650Type	800Type	1100Type
Way of folding	Two carriers	Two carriers	Two /three carriers
A	140-650	160-800	220-1100
B	70-800	70-800	70-800
C(min)	70	70	70
D	10-20	10-20	70-800
E	65-320	75-390	105-540
Crash Lock Bottom Box
Model	650Type	800Type	1100Type
Way of folding	Two carriers	Two carriers	Two /three carriers
A	140-650	160-800	220-1100
B	100-800	100-800	100-800
C(Min)	70	70	70
D	10-20	10-20	10-20
E	65-320	75-390	105-540
H	30-100	30-100	30-100
4 Corners Box
Model	650Type	800Type	1100Type
Way of folding	Two carriers	Two carriers	Two /three carriers
A	160-650	160-800	160-1100
B	90	90	105
H	70-800	70-800	70-800
6 Corners / 6 Corners in Climbing Way
Model	650Type	800 Type	1100 Type
Way of folding	Two carriers	Two carriers	Two/three carriers
A	250-650	250-800	270-1100
B	130-800	130-800	130-800
H	30-100	30-100	30-100
