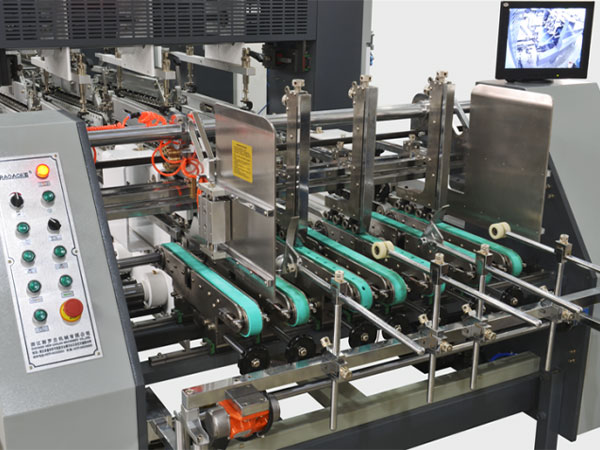

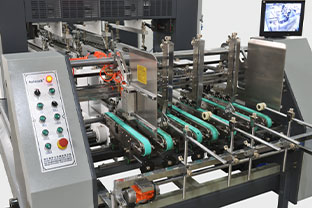

XL-P-S Introduction

The XL-P-S series fully automatic new intelligent box gluing machine integrates advanced design technology, which is mainly reflected in the memory control system. It stores and remembers the positioning parameters of the shaking plate for different specifications of paper boxes, achieving fully automatic memory control of shaking plate positioning and improving box-making efficiency and accuracy.

The whole machine adopts a servo motor control system and is designed with universal modules, including correction functions for paper box horn mouth, over line, offline, etc., as well as a pre-folding function of about 165 ° abduction straps. It has been upgraded to a guide plate climbing structure with automatic bottom locking, which is 80% faster than traditional bottom locking devices in terms of speed. The XL series fully automatic new intelligent box gluing machine is the preferred product in the packaging industry. It can not only produce single-sided, double-sided, and hooked bottom box types, but also meet the forming requirements of four-corner and hexagonal boxes.

XL-P-S Parameters

MODEL	1200	1450	1700
Paper material	Cardboard 210-800gsm, A/ B/ E Flute
Max.Speed	280m/min
Max. thickness of folded box	12mm
Way of folding	Fold 1 and fold 3 are 180°and 135°, fold 2 and fold 4 are 180°
Power supply	3P 380V 50HZ
Blank width	1200	1450	1700
Length × Width × Height	18.6×3.0×1.65m	18.6×3.2×1.65m	18.6×3.5×1.65m
Net Weight	12.5T	13.5T	14T
Total power	36kw	36kw	36kw

XL-P-S Function

Dual-purpose equipment, capable of pasting cardboard and corrugated paper packaging boxes.

Strong stainless steel frame ensures the machine runs stably at high speed.

Automatic fault diagnosis alarm function, Wireless remote control for easy user operation.

A machine with PLC control, a photocell touch screen for adjusting the machine.

Low-voltage electrical appliances, button switches, transmission parts, timing belts, press belts, bearings, servo motors, inverters, pneumatic components, etc., are all imported products that meet European and American advanced national safety standards.

The side touch screen displays the machine's speed, output, fault alarm, touch screen controls the machine's start/stop, paper feeding clutch, box receiving part's start/stop, parameter setting, and other operations.

XL-P-S Features Introduction

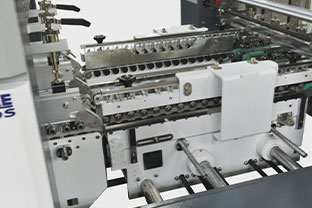

	Paper Feeding Section 1. The feed part is driven by a variable frequency motor and synchronizes with the main engine. 2. Feeder section equipped with three pieces of feeding knives, adjust the asymmetrical lengths as per the box sample. 3. Rail width can be horizontally adjusted and set by a seven-piece 30mm thickened feeding belt and a 10mm metal board. 4. Operators can operate the feeder switch in any region. 5. Embossing drive wheel guides the feeding section belt, side feed gates on the right and left are adjustable according to the products. 6. The vibration device coordinates with the motor, which helps the machine feed consecutively and automatically, quickly and simply. The feeder section can stack 400MM height paperboard.
	Aligner Section The paper board sent from the feeder section will be corrected by the aligner section to ensure accurate transmission. Pressing drive pressure can be adjusted up and down to accommodate different paper board thickness.

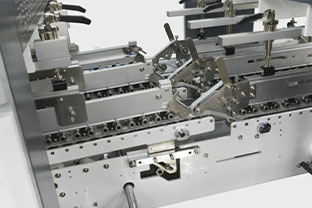

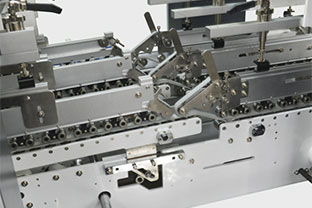

	Pre-Folding Section Special first folding line pre-fold 180°. Third line 165°, which perfectly meets the requirements of automatic packaging y.

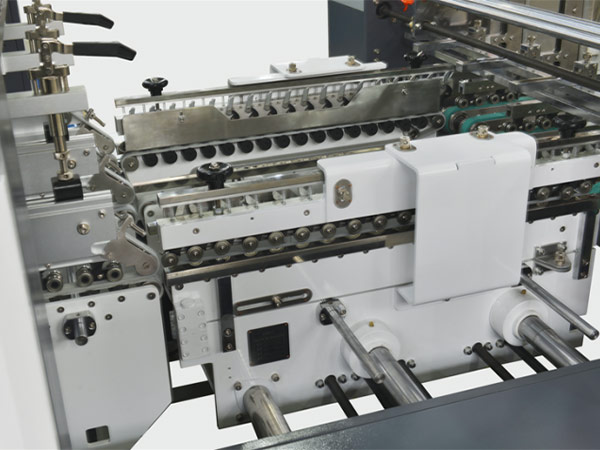

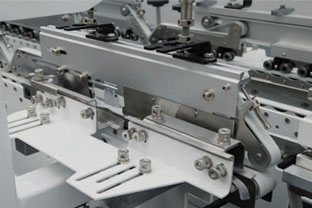

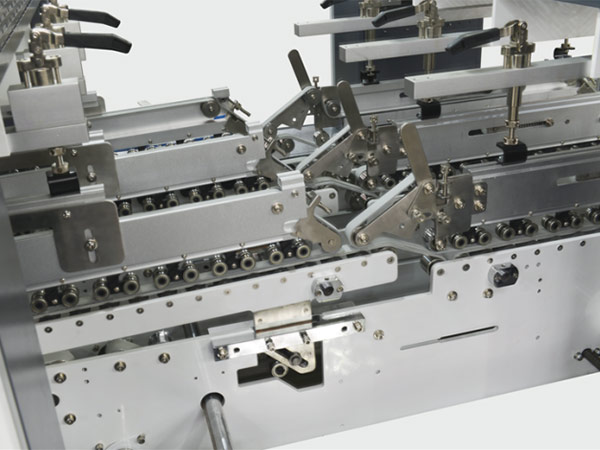

	Climbing Section Besides the faster speed, higher precision, and running more steadily, it is also much easier to adjust the machine comparing with traditional folder gluer.

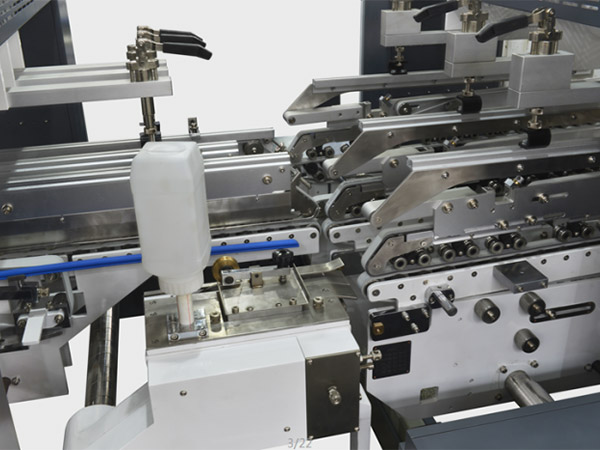

	Lower Gluing Tank 1. The lower gluing tank is 2L. 2. Easy to remove and clean. 3. Electronic upper gluing system by guns.

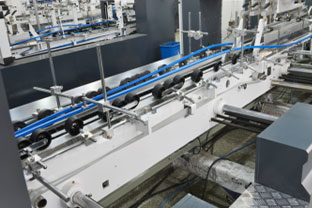

Folding and Closing 1. The Second and fourth folding line 180°. 2. The folding and closing section transmits from the right and left side, the belt speed can be adjusted separately, and the way of the box running to ensure straight delivery.

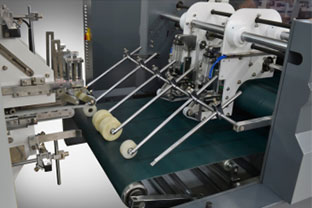

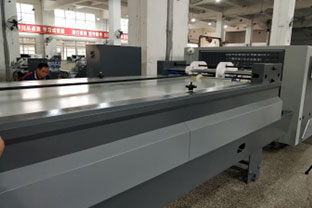

Trombone Section 1. The up and down belt can be adjusted separately. 2. Equipped with a photo-electronic counting device and a kicking paper device, which can press the paper after accounting and make it easy to pack. Also equipped with a feeding paper inspection device.
4 and 6-Corner Motorized and untimed electronic back-folding system with intelligent servo motor technology.

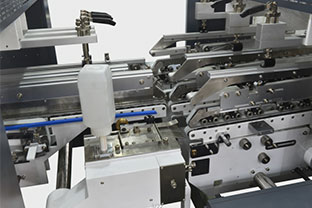

Transmission 1. Equipped with a special additional sponge belt for the pressing of the box valley part. 2. Upper section moves back and forward, allowing for different box lengths.
Cold Glue System Equipped with three guns, convenient in the production of 4/6 corner box and various special-shaped boxes, gluing quickly and accurately sizing.

Samples Parameters

Straight Line Box
Model	650Type	800Type	1100Type
Way of folding	Two carriers	Two carriers	Two /three carriers
A	140-650	160-800	220-1100
B	70-800	70-800	70-800
C(min)	70	70	70
D	10-20	10-20	70-800
E	65-320	75-390	105-540

Crash Lock Bottom Box
Model	650Type	800Type	1100Type
Way of folding	Two carriers	Two carriers	Two /three carriers
A	140-650	160-800	220-1100
B	100-800	100-800	100-800
C(Min)	70	70	70
D	10-20	10-20	10-20
E	65-320	75-390	105-540
H	30-100	30-100	30-100

4 Corners Box
Model	650Type	800Type	1100Type
Way of folding	Two carriers	Two carriers	Two /three carriers
A	160-650	160-800	160-1100
B	90	90	105
H	70-800	70-800	70-800

6 Corners /6 Corners in Climbing Way
Model	650Type	800 Type	1100 Type
Way of folding	Two carriers	Two carriers	Two/three carriers
A	250-650	250-800	270-1100
B	130-800	130-800	130-800
H	30-100	30-100	30-100

XL-P-S SERIES Automatic Intelligent Speedwave Folder Gluer

XL-P-S Introduction

XL-P-S Parameters

XL-P-S Function

XL-P-S Features Introduction

Samples Parameters

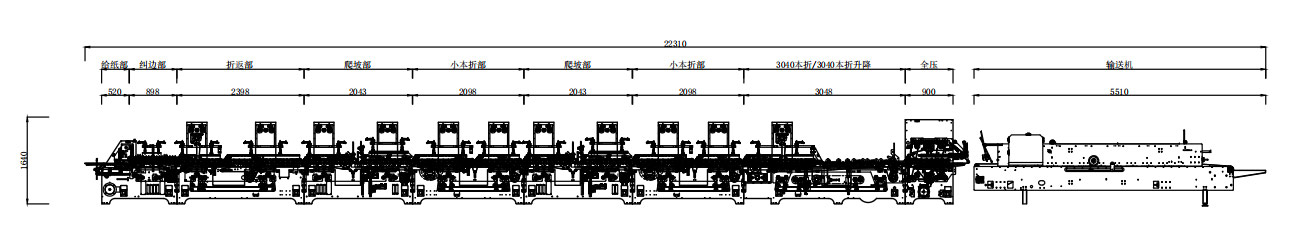

Foundation Layout Plan
