LC Introduction

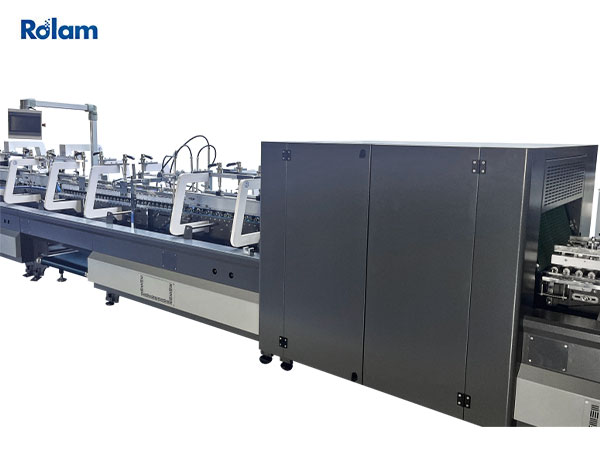

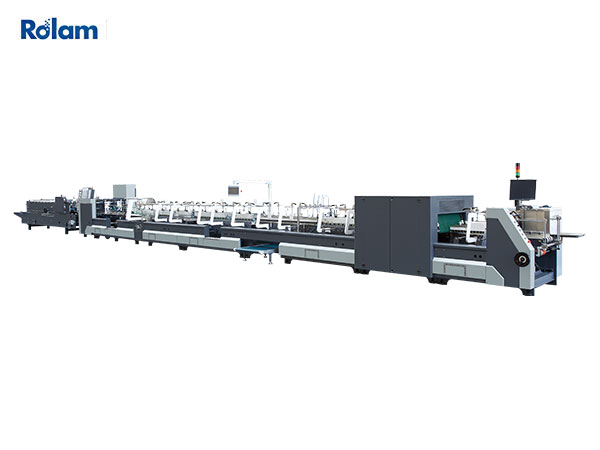

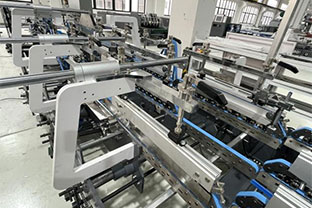

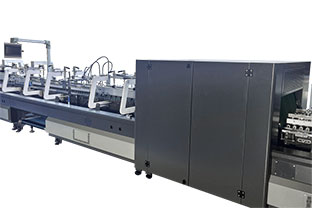

The LC-C-S fully automatic high-speed box gluing machine integrates advanced design concepts and technology, featuring precise and rapid changeovers, as well as multifunctional configurations, to meet the packaging and box gluing production requirements ranging from small to medium-large batches in the market.
The automatic feeding system is independently driven by a motor; work pieces are saved and can be retrieved at will. It is equipped with a new multifunctional universal module, including a 90° corner attachment and left/right corner pre-bending functions. The entire machine employs motor control technology, featuring an extended lock bottom and an extended base folding section, capable of producing box types such as straight-sided boxes, lock-bottom boxes, and four-sided boxes. For complex and challenging box types, it provides workers with unlimited creative space and operational possibilities. The LC-C-S series is a fully automated case-making machine with high automation levels and comprehensive functions, enabling paper box manufacturers to maximize productivity (tailored functions for specific box types).
LC Parameters
|
MODEL |
650 |
800 |
1100 |
|
Paper material |
Cardboard 210-800gsm |
||
|
Max.Speed |
Machine Speed: 400m/min Inspection speed: 300m/min |
||
|
Max. thickness of folded box |
12mm |
12mm |
12mm |
|
Way of folding |
Fold 1 and fold 3 are 180°and 135°, fold 2 and fold 4 are 180° |
||
|
Power supply |
3P 380V 50HZ |
||
|
Blank width |
650mm |
800mm |
1100mm |
|
Length x Width x Height |
19.7x2.2x1.67m |
20x2.3x1.67m |
20x2.6x1.67m |
|
Net Weight |
8.8T |
9T |
10T |
|
Total power |
30kw |
35kw |
35kw |
LC Function
The device can stick to cardboard.
Strong stainless steel frame ensures the machine runs stably at high speed.
Automatic fault diagnosis alarm function, Wireless remote control for easy user operation.
A machine with PLC control, a photocell touch screen for adjusting the machine.
Low-voltage electrical appliances, button switches, transmission parts, timing belts, press belts, bearings, servo motors, inverters, pneumatic components, etc., are all imported products that meet European and American advanced national safety standards
The side touch screen displays the machine's speed, output, fault alarm, touch screen controls the machine's start/stop, paper feeding clutch, box receiving part's start/stop, parameter setting, and other operations.
LC Features Introduction
|
|

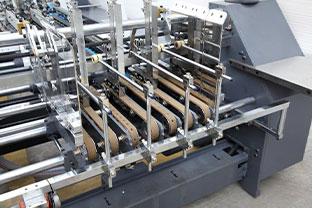

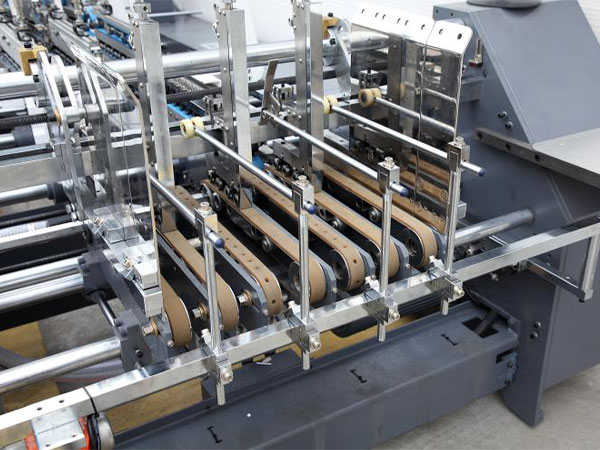

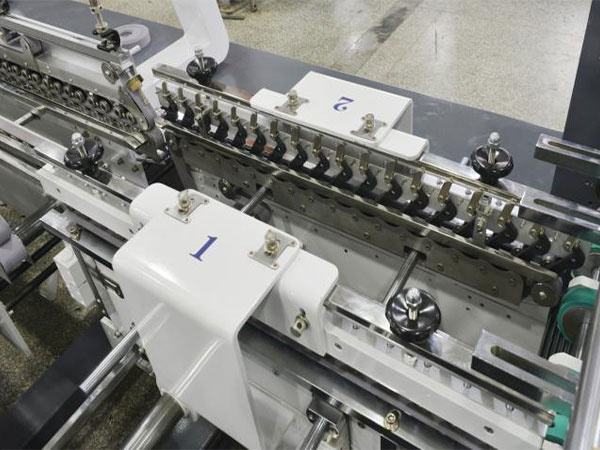

Paper Feeding Section 1. The feed part is driven by a variable frequency motor and synchronizes with the main engine. 2. Feeder section equipped with three pieces of feeding knives, adjust the asymmetrical lengths as per the box sample. 3. Rail width can be horizontally adjusted and set by a seven-piece 30mm thickened feeding belt and a 10mm metal board. 4. Operators can operate the feeder switch in any region. 5. Embossing drive wheel guides the feeding section belt, side feed gates on the right and left are adjustable according to the products. 6. The vibration device coordinates with the motor, which helps the machine feed consecutively and automatic feeding quick and simply. The feeder section can stack 400MM height paperboard. |
|
|
Aligner Section The paper board sent from the feeder section will be corrected by the aligner section to ensure accurate transmission. Pressing drive pressure can be adjusted up and down to accommodate different paper board thickness. |
 |
Detection Department The inspection interface is simple, easy to operate, with text notes on the function keys, real-time image monitoring, real-time data statistics, a defect display area, and other functions. Can effectively observe the current product quality status. The defect display is very intuitive, and the defect area and defect gray value can be directly displayed, which is helpful for the captain to adjust the parameters. The defect directly shows the area and gray scale parameter adjustment, which is easy to understand. |
 |
Stripping Section It is used to eliminate the unqualified products detected, and it is fully automatic, easy, and fast to remove waste, and improve work efficiency. |
 |
Pre-Folding Section Special first folding line pre-fold 180°. Third line 165°, which perfectly meets the requirements of automatic packaging y. |
 |

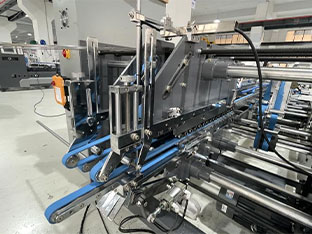

Crash Lock Bottom Section Compete set of crash lock bottom devices makes the lock bottom Part perfectly. Sectional-type upper Belt board with a special design. |
|

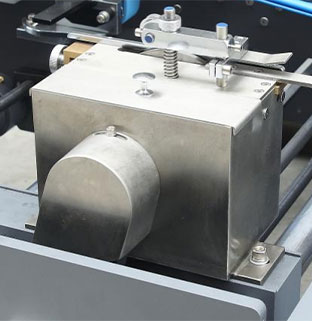

Lower Gluing Tank 1. The lower gluing tank is 2L. 2. Easy to remove and clean. 3. Electronic upper gluing system by guns. |
|
|

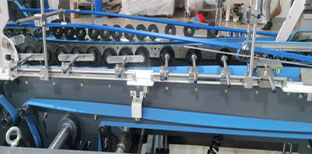

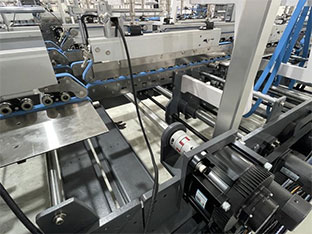

Folding and Closing 1. Collapsible central carrier by pneumatic system, saving time for set-up and allows to run small boxes. 2. The folding and closing section transmits from the right and left side, the belt speed can be adjusted separately, and the way the box runs can be corrected to ensure straight delivery. |
|
|
Trombone Section 1. The up and down belt can be adjusted separately. 2. Equipped with a photo-electronic counting device and a kicking paper device, which can press the paper after accounting and make it easy to pack. Also equipped with a feeding paper inspection device. |
|
|

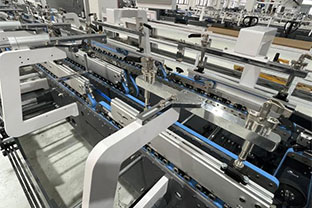

Box Squaring Full press section continuously and automatically, with a box collection mechanism that ensures a neat transfer to the press section, guaranteeing a well-aligned flow. |
|
|

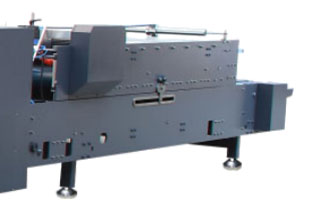

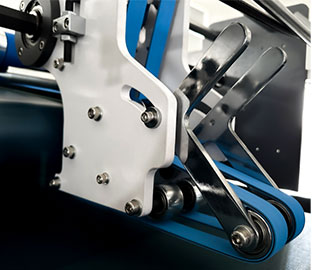

Transmission 1. Equipped with a special additional sponge belt for the pressing of the box valley part. 2. Upper section moves back and forward, allowing for different box lengths. |
|
|

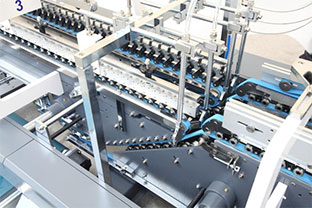

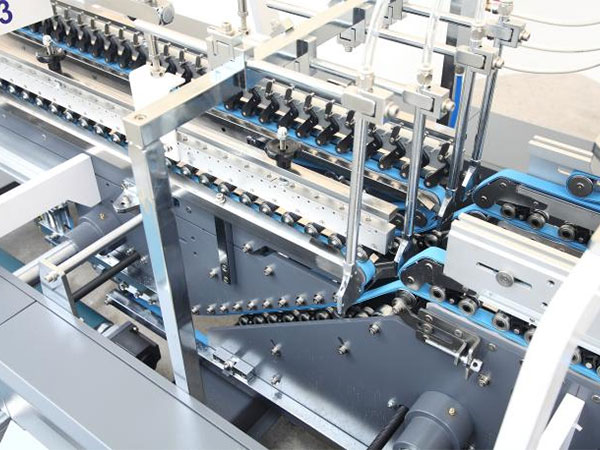

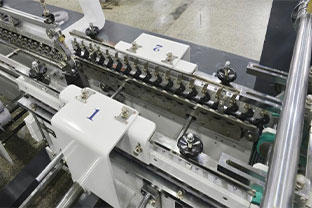

Four and Six Corners Motorized and untimed electronic back-folding system with intelligent servo motor technology. |
|
|
Cold Glue System Equipped with three guns, convenient in the production of 4/6 corner boxes and various special-shaped boxes, gluing quickly and accurately, and sizing. |
|

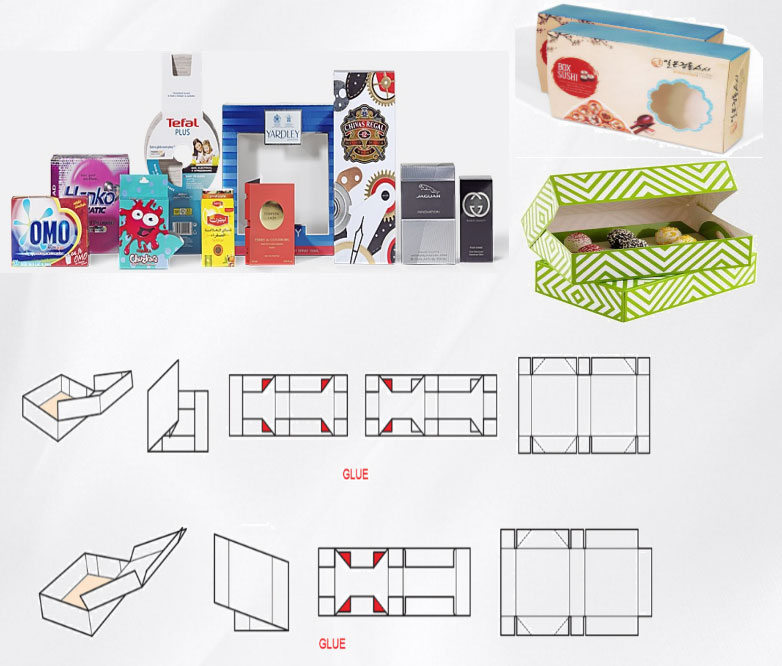

Samples Parameters
| Straight Line Box |  |
|||
|
Model |
650Type |
800Type |
1100Type |
|
|
Way of folding |
Two carriers |
Two carriers |
Two /three carriers |
|
|
A |
130-650 |
142-800 |
202-1100 |
|
|
B |
70-800 |
70-800 |
70-800 |
|
|
C(min) |
70 |
70 |
70 |
|
|
D |
10-20 |
10-20 |
10-20 |
|
|
E |
65-320 |
71-390 |
101-540 |
|
| Crash Lock Bottom Box |  |
|||
|
Model |
650Type |
800Type |
1100Type |
|
|
Way of folding |
Two carriers |
Two carriers |
Two /three carriers |
|
|
A |
130-650 |
142-800 |
202-1100 |
|
|
B |
100-800 |
100-800 |
100-800 |
|
|
C(Min) |
70 |
70 |
70 |
|
|
D |
10-20 |
10-20 |
10-20 |
|
|
E |
65-320 |
71-390 |
101-540 |
|
|
H |
30-100 |
30-100 |
30-100 |
|
| 4 Corners Box |  |
|||
|
Model |
650Type |
800Type |
1100Type |
|
|
Way of folding |
Two carriers |
Two carriers |
Two /three carriers |
|
|
A |
120-650 |
120-800 |
120-1100 |
|
|
B |
130-450 |
130-600 |
130-800 |
|
|
H |
30-100 |
30-100 |
30-100 |
|
| 6 Corners /6 Corners in Climbing Way |  |
|||
|
Model |
650Type |
800 Type |
1100 Type |
|
|
Way of folding |
Two carriers |
Two carriers |
Two /three carriers |
|
|
A |
250-650 |
250-800 |
250-1100 |
|
|
B |
130-450 |
130-600 |
130-800 |
|
|
H |
30-100 |
30-100 |
30-100 |
|

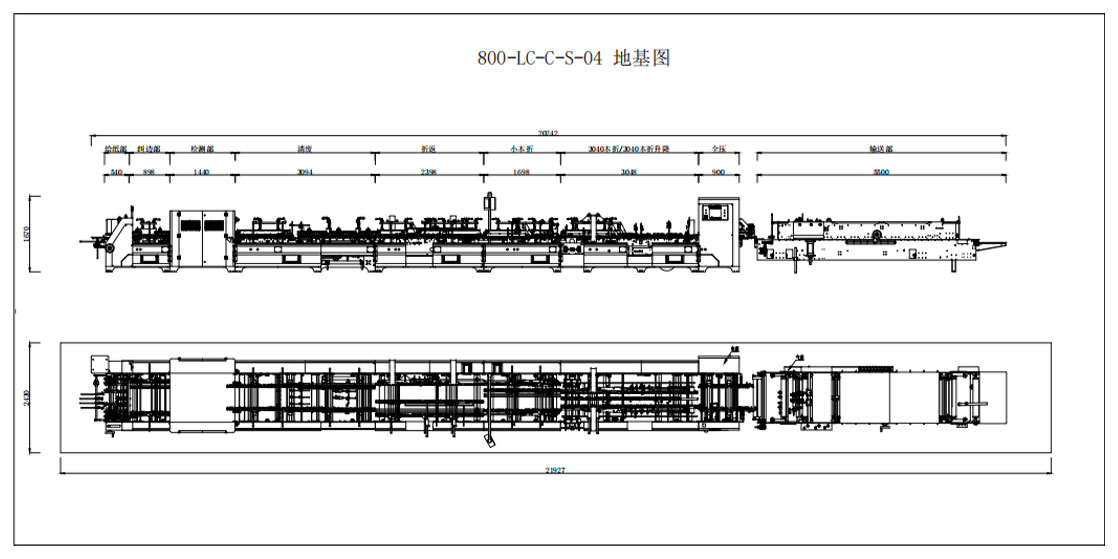

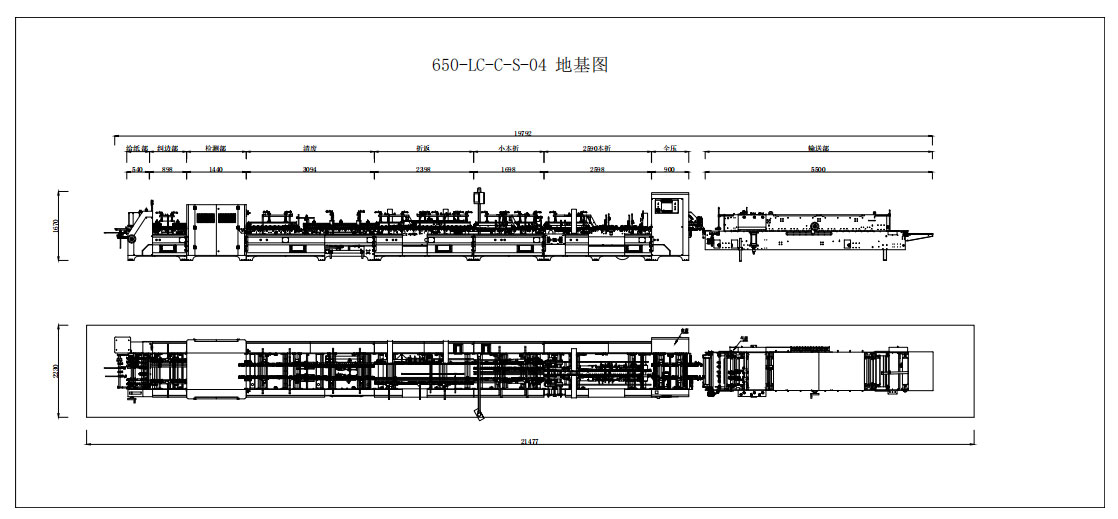

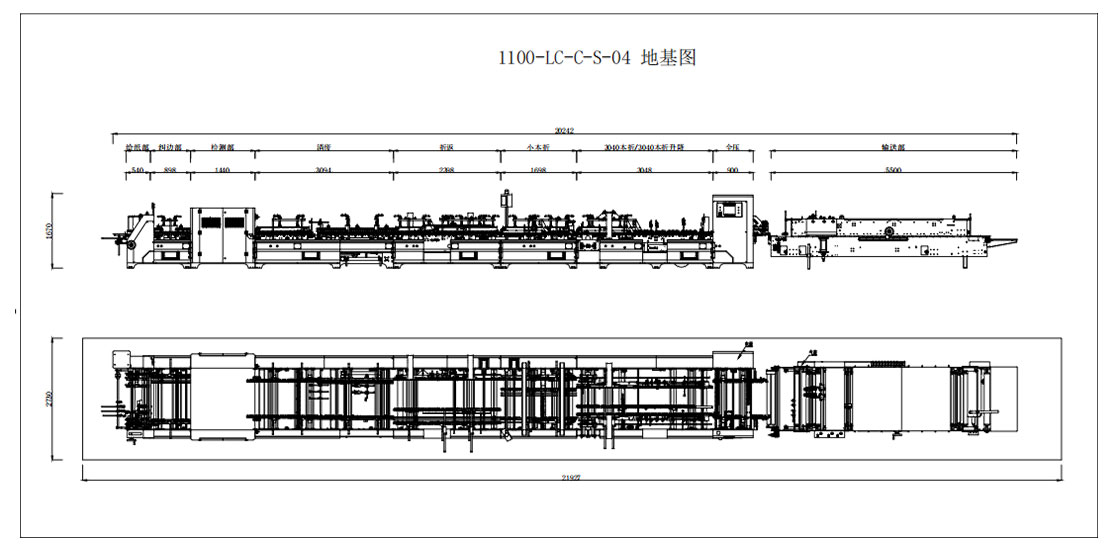

Foundation Layout Plan
