Introduction
Box stacker is a kind of unique multi- purpose tool that can be used to fold the carton, and to make the packaging easier.
For most high-speed automatic folder gluer in the market, their pressure box transportation department and the poultice box, cosmetics boxes, and other small cardboard package boxes, and a collection box for the traditional closed box, too late to collect box packing can be used in the automatic closing box machine device, automatic closing box machine design has synchronized device and the linkage of the box pasting machine.
The automatic stacker is the auxiliary box collection device that is linkage with end of the folder gluer. With the transfer turning function, it realizes the 90-degree turn-over conveying. It also increases the neatness and tightness of the box arrangement when the box comes to the collection step. High-speed counting and collection help to reduce labour and improve final packing efficiency.
Independent motor-driven, can link with any brand folder gluer.
Can collect many kinds of boxes, such as straight line box, double-sided box, crash lock bottom box, four corner box, and fine flute corrugated box.
Manual/Automatic dual mode, automatic mode can coordinate with the folder gluer automatically, no need for adjustment.
A horizontal delivery platform can be electrically adjusted to fit different-sized boxes.
Technical Parameters
|
Model |
S-450 |
|
Width |
100~450mm |
|
Length |
100~500mm |
|
Dimension |
3550*2000*1350 |
|
Power |
1KW |
|
Total mechanical weight |
0.6T |
|
Voltage |
220V,3PH |
|
Compressed air |
1bar |

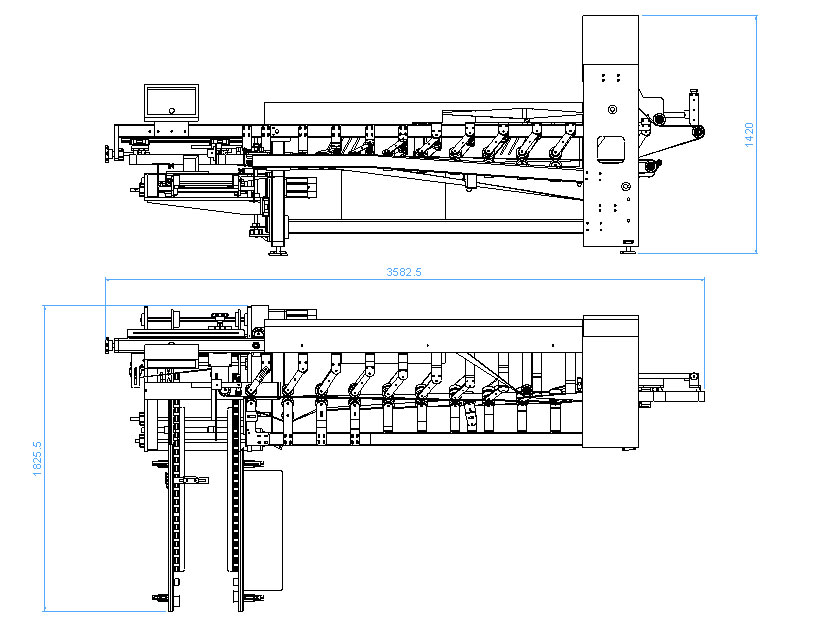

Foundation Drawing
