AS-A Automatic Folder Gluer

AS-A Automatic Folder Gluer

Categories
Folder-Gluer For Cardboard Box
Boese
 Rolam | Ragaoke
Model
AS-A
FOB Port
Ningbo,Shanghai
Terms of Payment
Western Union,T/T Paypal
Update
09/21/2019
AS-A Automatic Folder Gluer AS-A Automatic Folder Gluer AS-A Automatic Folder Gluer AS-A Automatic Folder Gluer AS-A Automatic Folder Gluer
Product Description

AS-A Parameters

Name AS-A Automatic Gluing Folding Machine
Model 650AS-A 800AS-A 1100AS-A
Paper Material Cardboard210-800g,  E Corrugated
Max. Liner speed Max. 260 meter/minute
Feeding way Automatically and continuously feeding
Way of folding Fold 2 and fold 4 are 180°
Glue Material Water-base cold glue
Total Power 9.2KW 9.2KW 9.2KW
Weight 2.5T 3T 3.5T
Over dimension 10.5x1.3x1.45m 10.5x1.5x1.45m 10.5x1.8x1.45m

AS-A Features introduction

Paper Feeding Section

6pcs Adjustable feeding belts to ensure easy adjustment,
stable and smoothly feeding.

Continuously Variable Speeder to ensure feeding internal
and stable transmission.

One-touch Pneumatic knife, easy for the adjustment of feeding belts.

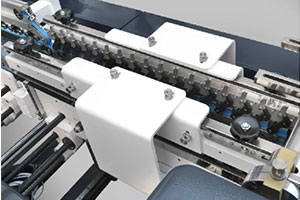

Aligner section

Equipped with auto-correction device to correct
the obliquity and ensure the correct feeding

Lower gluing tank

Equipped with the lower gluing tank.

Folding and closing

The folding is equipped with the driving belt,
folding belts have corrective function, extension work,
make the box forming more stable.

Trombone section

Adjust the pressure easily and reliably to ensure the gluing quality;
Equipped with pneumatic counting device which makes the counting conveniently.
The press is equipped with independent speeder.
The operator can set the collecting speed

Transmission

Press: Equipped with one-touch pneumatic pressure adjustment,
easy operation.Press has two functions:

1.waiting, when feeding is paused, press will auto enter into waiting state

2.Travel switch, pause the machine in case of wrong collecting

Samples Parameters

Straight-line box
Model 650Type 800Type 1100Type
A 90-650 90-800 120-1100
B 60-800 60-800 60-800
C(Min) 35 35 35
