Servo vs Gear Drive: Which Folder Gluer Technology Wins?

When a packaging plant invests in new carton converting equipment, the drive system rarely gets the spotlight. But ask any veteran operator: the difference between a gear‑driven machine and a servo‑driven one shows up every shift—in setup time, in waste percentage, and in the number of jams during a long run.

So which technology wins for folding and gluing corrugated boxes? The answer isn’t as simple as “servo is better.” It depends on your order mix, operator skills, and how you define value. Let’s break down the real‑world trade‑offs. For a closer look at drive system integration in a modern folder-gluer, check this technical overview.

The Core Difference: How Each Drive Moves Your Boxes

Gear drives use mechanical linkages—shafts, cams, and gears—to synchronize folding belts, glue wheels, and carrier chains. Every motion is locked to a master shaft. Change a fold parameter? You often need to adjust physical stops or swap gear sets.

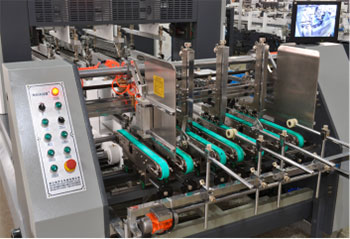

Servo drives, in contrast, run independent motors for each section. A central controller talks to each servo, allowing electronic synchronization. Adjusting a fold angle or gap becomes a number change on the HMI, not a wrench job.

This fundamental difference ripples through daily operations. Let’s compare them head‑to‑head.

Comparison: 5 Critical Dimensions

Data based on field studies from packaging machinery benchmarks.

Where Gear Drive Still Makes Sense

Gear‑driven folder‑gluers are not obsolete. If your plant runs long‑run, simple box styles with experienced mechanics on staff, a well‑maintained gear machine offers reliable throughput at a lower upfront cost. Many used machines on the market are gear‑driven, and they keep producing millions of boxes annually.

However, three modern realities have tilted the balance:

1. E‑commerce variety – Today’s orders mix small, medium, and large boxes. Changeovers happen multiple times per shift. Every minute saved on setup directly improves OEE.

2. Operator turnover – Younger technicians grow up with touchscreens and digital recipes. Mechanical cam adjustments are slower and more error‑prone for them.

3. Predictive maintenance – Servo systems report their own health. Gearboxes hide wear until a tooth breaks.

A 2022 study by the Technical University of Munich found that packaging lines using servo‑driven folder‑gluers reduced unscheduled downtime by 62% compared to gear‑driven equivalents, primarily due to faster fault diagnosis and fewer mechanical adjustments.

The Hidden Costs of “Simple” Gear Drives

Let’s talk about what vendors don’t advertise. A gear drive requires precision alignment. Over time, backlash increases. Operators compensate by over‑gluing or slowing the line. That extra glue adds material cost – often 5,000–5,000–8,000 per year per machine. Slower speeds eat into capacity.

Also, consider your product mix evolution. A gear machine optimized for a B‑flute 200x300mm box struggles when you win a contract for a tall, narrow e‑commerce box with a lock‑bottom. Re‑gearing costs both money and production downtime. Servo machines handle that new box style with a software recall.

（https://youtu.be/a0lc0j0LDnQ?si=GwtBG83jaRmcRFwo）

When Should You Upgrade or Choose Servo?

Ask these three questions:

• Do you run more than three different box sizes per shift?

• Is your average run length below 2,000 boxes?

• Do you track waste percentage, and is it above 3%?

If you answered “yes” to any, a servo‑driven folder‑gluer will likely pay back its higher initial cost within 18–24 months through reduced setup waste, fewer jams, and lower glue consumption.

But even if you stay with gear technology for now, certain upgrades—like retrofitting a servo‑driven glue pump or a servo‑assisted folding section—can bridge the gap.

Making Your Decision: A Simple Matrix

No single answer fits every plant. The “winner” is the technology that aligns with your order volatility, operator skill level, and capital strategy. If you want to compare real production data, request a performance sheet.

Getting Hands‑On: What to Look for in a Modern Folder‑Gluer

If you decide that precise, rapid changeovers are your future, pay attention to these features during your next equipment evaluation:

• Individual servo control for folding belts, feeder, and glue applicator – not just a single servo replacing the main gear.

• Preset recipe storage for at least 50 box styles, with USB or network backup.

• Oscillating glue valve that matches glue pattern to box speed – saves glue and reduces clean‑up.

• Quick‑release fold belts and tool‑less adjustments on side rails – these complement servo speed.

For plants running mixed corrugated orders with tight deadlines, a well‑specified servo‑driven system often becomes the bottleneck‑breaker. One packaging manager we spoke with at a Midwest corrugated converter said, “Our servo machine cut makeready from 40 minutes to 11. That’s an extra two hours of production per shift – we paid off the premium in seven months.”

Final Verdict: It’s About Your Box Mix, Not the Motor Brand

Gear drives are like manual transmissions – durable, understandable, and cheap to buy. Servo drives are automatic with adaptive cruise control – smoother, faster to adapt, and easier for new drivers.

If your plant mostly produces one or two box styles for high‑volume customers, a gear‑driven folder‑gluer remains a workhorse. But if you compete in e‑commerce, custom packaging, or short‑run just‑in‑time delivery, servo technology gives you a measurable edge.

And when you’re ready to see a servo‑driven system in action – one designed for real‑world mixed orders – click here to explore detailed specifications and case studies.

Disclaimer: Performance data are based on industry benchmarks and field reports as of 2024. Actual results vary with box material, operator skill, and maintenance practices. Always request a run‑off test with your own box samples.
