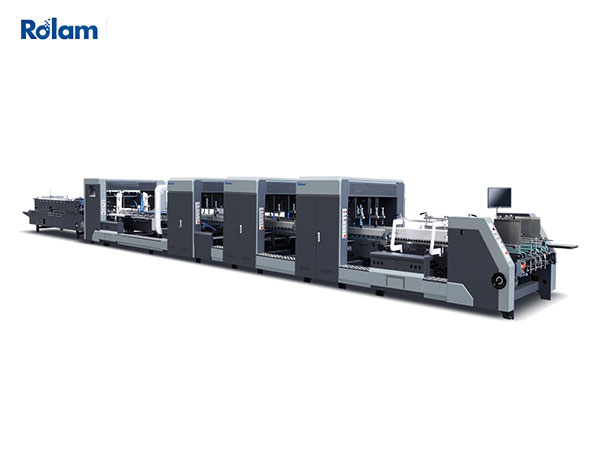

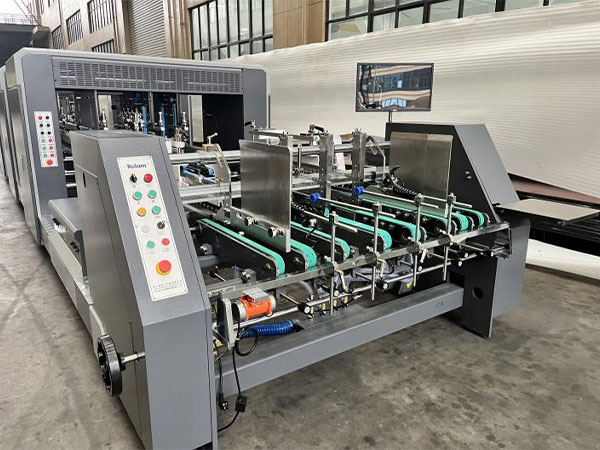

QHZ-S Introduction

The QHZ-S series machine adopts a V-shape belt drive, which makes the operation smoother and more stable compared to traditional main motor equipment.

The QHZ-S series pre-folding section adds a secondary creasing function to correct existing creasing lines and substandard phenomena on the corrugated box itself. The folding section is equipped with a compression function, and the folding belt is equipped with a servo motor, ensuring perfect corrugated box forming.

The QHZ-S series fully automatic heavy-duty corrugated box gluing machine is suitable for folding and forming 4/6 corner, lock bottom, and straight line corrugated cardboard boxes.

QHZ-S Parameters

MODEL	1200	1450	1700
Paper material	Cardboard 210-800gsm, A/ B/ E Flute
Max.Speed	280m/min
Max. thickness of folded box	12mm
Way of folding	Fold 1 and fold 3 are 180°and 135°, fold 2 and fold 4 are 180°
Power supply	3P 380V 50HZ
Blank width	1200	1450	1700

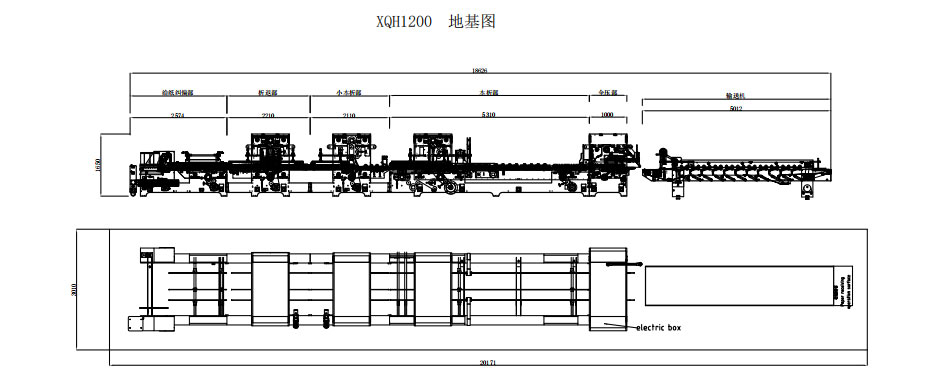

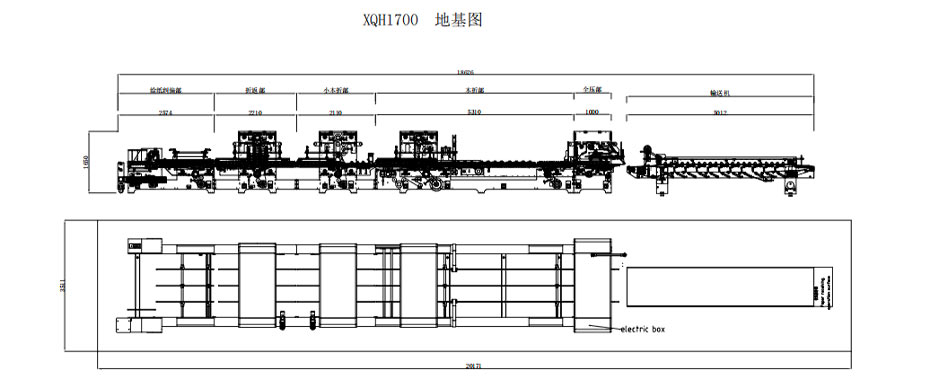

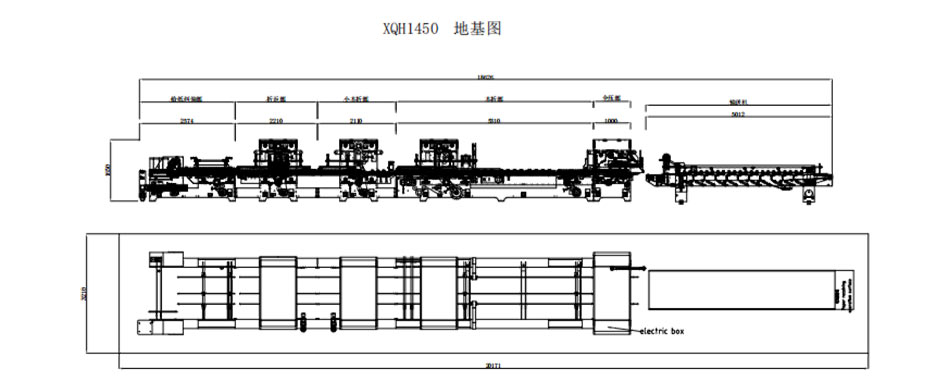

Length × Width × Height	18.6×3.0×1.65m	18.6×3.2×1.65m	18.6×3.5×1.65m
Net Weight	12.5T	13.5T	14T
Total power	36kw	36kw	36kw

QHZ-S Function

QHZ is a dual-use equipment that can be used to paste cardboard and corrugated paper packaging boxes.

Strong stainless steel frame ensures the machine runs stably at high speed.

Automatic fault diagnosis alarm function, Wireless remote control for easy user operation.

A machine with PLC control, a photocell touch screen for adjusting the machine.

Low-voltage electrical appliances, button switches, transmission parts, timing belts, press belts, bearings, servo motors, inverters, pneumatic components, etc., are all imported products that meet European and American advanced national safety standards

The side touch screen displays the machine's speed, output, fault alarm, touch screen controls the machine's start/stop, paper feeding clutch, box receiving part's start/stop, parameter setting, and other operations.

QHZ-S Features Introduction

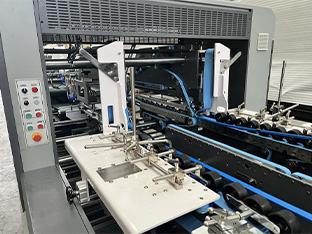

	Paper Feeding Section 1. Equipped with a suction function. 2. The multi-level track ensures the verticality of the cardboard, ensuring that the paper feeding is not skewed. The unique structure makes the cardboard adjustment simple and convenient. 3. The push tooth structure is easy to adjust and stabilize when dragging cardboard. 4. Pneumatic knife lifting reduces adjustment and box replacement time. 5. A vibration device combined with a motor for fast, simple, continuous, automatic, and correct paper feeding.
	Aligner Section 1. The cardboard fed out by the feeding section is corrected and guided by the edge correction section to ensure the accuracy of the conveying. 2. The driving pressure can be adjusted up and down to adapt to different thicknesses of cardboard.
	Accessories The positioning accuracy of the pressure line is high, which can flatten and shape the cardboard to varying degrees, improve the accuracy of cardboard boxes, and ensure standardized and continuous paper feeding. It is easy to operate, time-saving, labor-saving, and improves production efficiency.

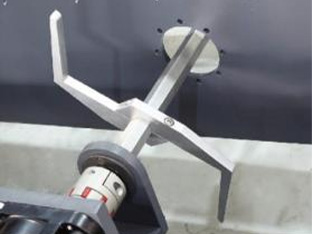

	Crash Lock Bottom Section Servo motor control, complete set of front placket locking device, ensuring precise and error-free locking action. Adjustable hook bottom device, not easy to cut flower boxes, easy and fast operation, and control. Add a secondary pressure line function to the front bottom fold, correct the pressure line existing in the corrugated box itself, and strengthen the flatness of large corrugated paper output.

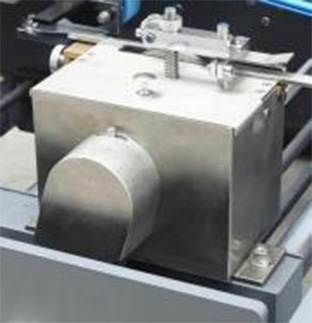

	Lower Gluing Tank 1. The lower gluing tank is 2L. 2. Easy to remove and clean.

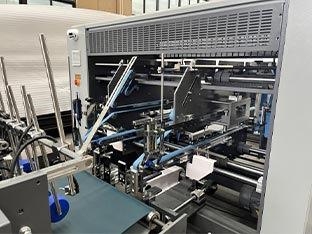

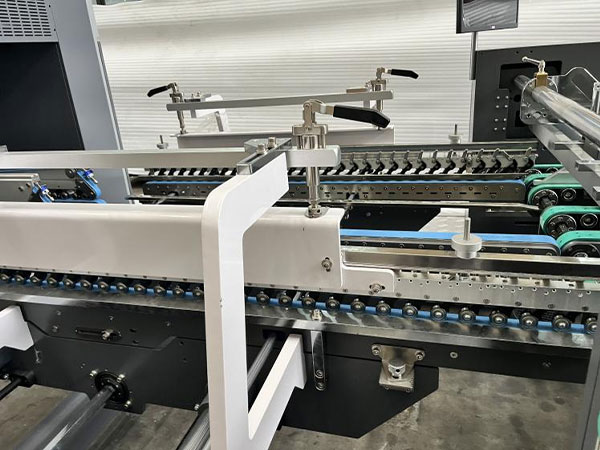

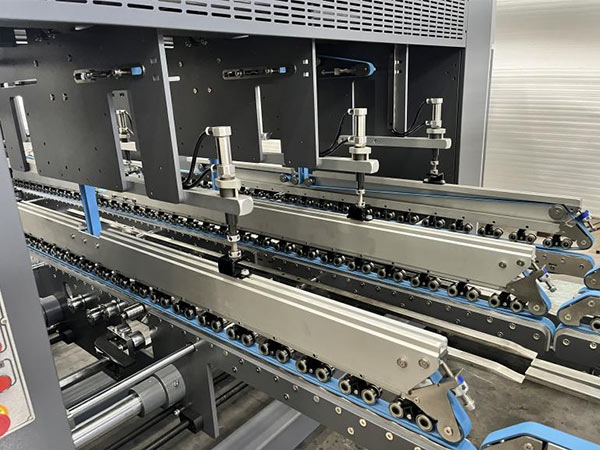

Folding and Closing 1. Equipped with a three-plate track device, this folding is lengthened. 2. The upper pressure belt adopts the main transmission and cylinder pressure, which is more suitable for producing corrugated products of different thicknesses. 3. This folding belt servo computer corrects, reduces adjustment time, and achieves precise paper box accuracy 4. Squeezing device.

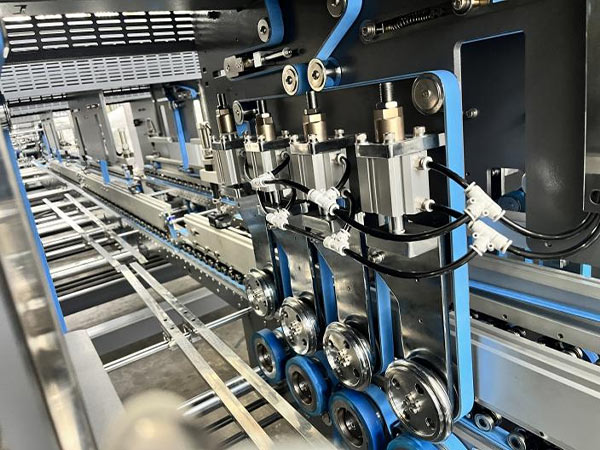

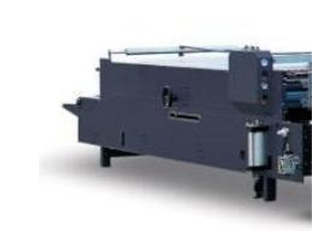

Trombone Section 1. Equipped with an independent motor drive, the belt can be individually controlled to adjust its size. 2. The paper delivery section adopts a cylinder pressure system for easy adjustment of pressure, ensuring effective adhesion of products.
Transmission 1. The press section is equipped with correction and leveling functions, effectively improving the horn mouth of corrugated products. 2. Adopting a waiting function, when the paper feeding section is in a paused state, the pressing section automatically presses Enable the waiting function; Automatically pause the machine when there is a paper delivery error.
4 and 6-Corner Motorized and untimed electronic back-folding system with intelligent servo motor technology.
Cold Glue System Equipped with three guns, convenient in the production of 4/6 corner boxes and various special-shaped boxes, gluing quickly and accurately, and sizing.

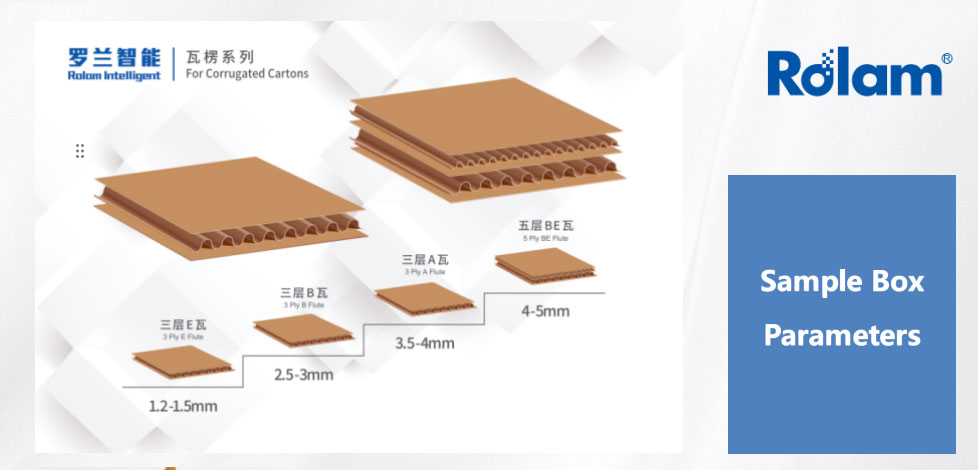

Samples Parameters

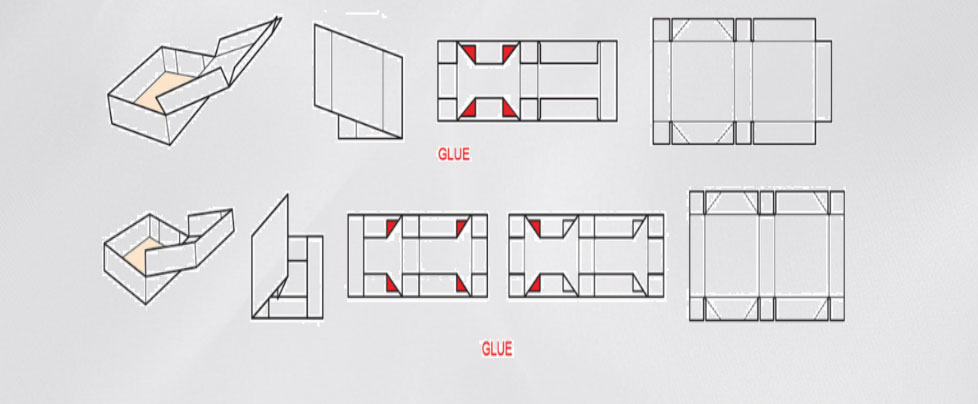

Straight Line Box
Model	1200Type	1450Type	1700Type
A	340-1200	360-1450	360-1700
B	80-1000	80-1000	80-1000
C	80-1000	80-1000	80-1000
D	10-35	10-35	10-35
E	170	170	170

Crash Lock Bottom Box
Model	1200Type	1450Type	1700Type
A	340-1200	340-1200	340-1200
B	80-1000	80-1000	80-1000
C	80-1000	80-1000	80-1000
D	10-35	10-35	10-35
E	170	170	170
H	35	35	35
