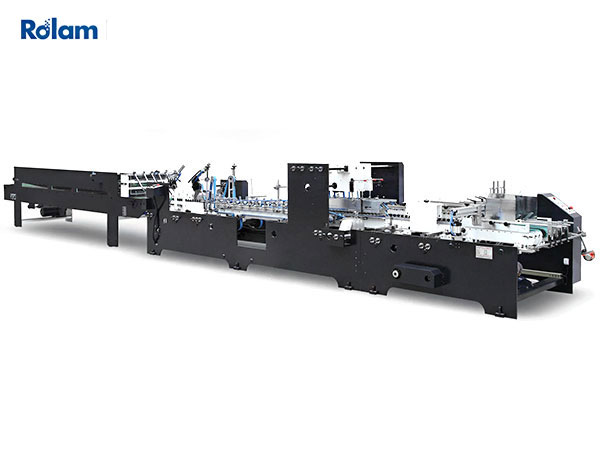

G SERIES Automatic High-Speed Bottom Lock Folder Gluer

G SERIES Automatic High-Speed Bottom Lock Folder Gluer

Categories
Folder-Gluer For Corrugated Box
Boese
 Rolam | Ragaoke
Model
GK-G
FOB Port
Ningbo,Shanghai
Terms of Payment
Western Union,T/T Paypal
Update
11/27/2019
G SERIES Automatic High-Speed Bottom Lock Folder Gluer G SERIES Automatic High-Speed Bottom Lock Folder Gluer G SERIES Automatic High-Speed Bottom Lock Folder Gluer G SERIES Automatic High-Speed Bottom Lock Folder Gluer G SERIES Automatic High-Speed Bottom Lock Folder Gluer
Product Description

G Parameters

Name GK-G automatic high-speed gluing folding machine
model GK-800G GK-1200G
Paper Material Cardboard210-800g  A/B/E Corrugated
Max. Liner speed Max. 220 meter/minute
Feeding way Automatically and continuously feeding
Way of folding  Fold 2 and fold 4 are 180°
Glue Material Water-base cold glue
Power Supply 3P380V50HZ
Total power 11.2kw 11.2kw
Weight 4T 5T
Over dimension 11x1.5x1.15 11x1.9x1.15

G Features introduction

Paper Feeding Section

automatic feed correctly and continuously, internal of feeding is adjusted by continuously
variable speeder; independent high-speed feeding bell can be easily adjusted; independent
vibrating motor can improve feeding greatly; feeding blade and baffle on the left
and right can be adjusted upper and down to shorten adjusting and carton changing time.

Aligner section

Equipped with auto-correction device to correct the obliquity and ensure the correct feeding

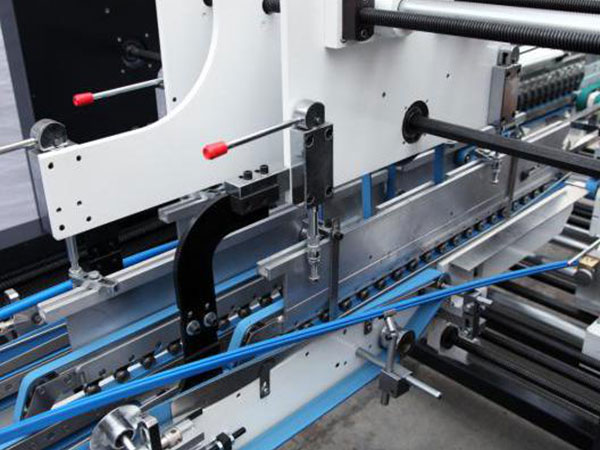

Lock bottom Section

board tracking structure, upper gluer can make bottom-locked box automatic gluing and forming.

The entire bottom-lock part is installed in a reversible bracket, substantially reduce the swap adjustment time of bottom-fold box and the other types of box.

Lower gluing tank

Equipped with the lower gluing tank.

Folding and closing

The folding is equipped with the driving belt, folding belts have corrective function,
extension work, make the box forming more stable.

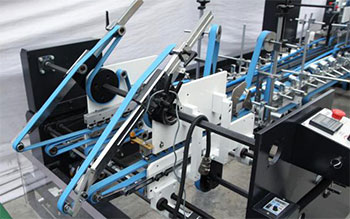

Trombone section

Adjust the pressure easily and reliably to ensure the gluing quality; Equipped with
pneumatic counting device which makes the counting conveniently. The press is
equipped with independent speeder. The operator can set the collecting speed

Transmission

Press: Equipped with one-touch pneumatic pressure adjustment, easy operation.Press has two functions:

1.waiting, when feeding is paused, press will auto enter into waiting state

2.Travel switch, pause the machine in case of wrong collecting

Samples Parameters

Straight-line box
Model GK-800G GK-1200G
A 75-800 250-1200
B 80-700 80-700
C(Min) 120 120
Crash lock bottom box
Model GK-800G GK-1200G
A 180-800 280-1200
B 90-800 80-700
C(Min) 20-100 25-100
D(Min) 35 35
E(Min) 100 100
