4 Channels System

KQ cold glue system has the characteristics of high efficiency, flexibility, good stability and easy maintenance

Application Field

The best partner of folder gluer,folding machine and corrugated box machine,is important for carton boxes,four or six corner boxes,hamgurger boxes,folding,file bags,introductions,envelops and other paper products.

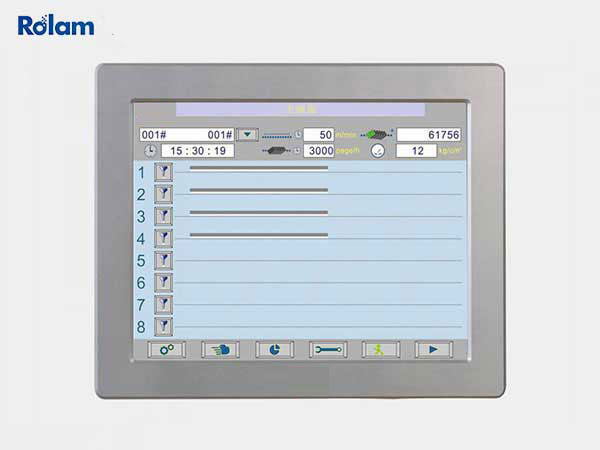

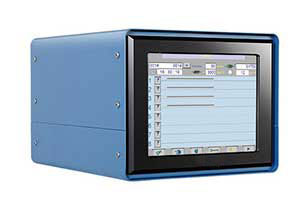

	High efficiency controller Modular control and monitor function,fully visualized operation through a central touch screen for flexible to ensure straightforward operation.	Model	HZ4
		Input Voltage	220VAC（±20%）50-60HZ
		Power	480W
		Glue Precision	±1mm
		Size	280*233*183mm
		Spray Head Quantity	Optional,up to 4
		Photocell Quantity	Optional,up to 4
		Weight	7.8kg

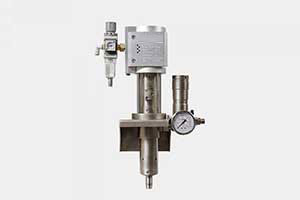

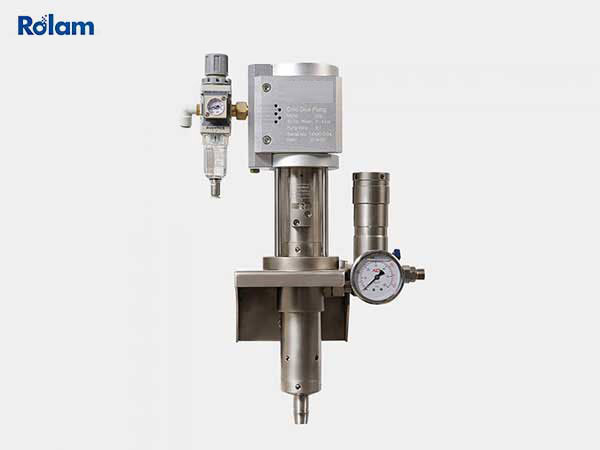

	Application of pisto pump 1:6 high pressure pisto pump transfer information with controller.Equipped with automatic voltage regulator to ensure the glue in the same size.	Model	HB6
		Maximum Viscosity of glue	3000mPas
		Transport Efficiency per Two-pass	80cm3
		Input Air pressure	6:1
		Weight	12.5kg
		Size	485*225*150

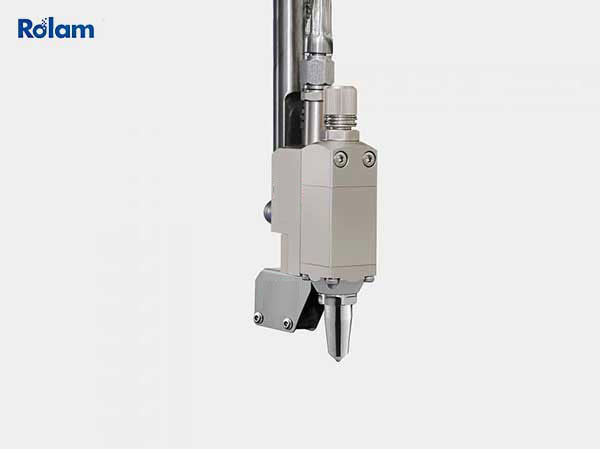

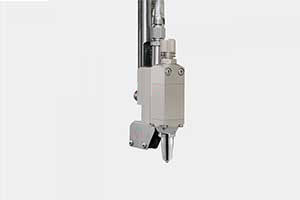

	Cost Contral Precision in ± mm at the speed of 300m/min	Model	PJ-4000
		Size	51.5*25*127
		Maximum Air Pressure	32bar
		Maximun Frquency	500Hz
